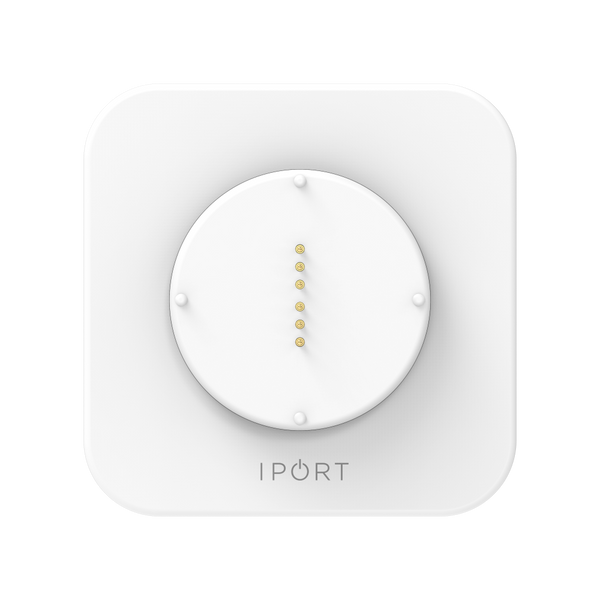

iPort Connect Pro WallStation
Brian Long
Solid Magnetic Wall Mounting
The Connect Pro WallStation gives iPad in a Connect Pro Case a solid magnetic mount on any wall or solid surface, charging at 5V/3A through the included power supply and a Cat 5 cable run for clean, low-profile installation. It fits standard US1G, EURO1G, and UK1G wall boxes worldwide, and can be upgraded with the Connect PoE+ Network Adapter for combined power and hardwired internet.
Features
- Magnetic Mounting System – Secure, low-profile wall placement.
- 5V/3A Charging – Delivered via included power supply and Cat 5 cable run.
- Global Wall Box Compatibility – Fits US1G, EURO1G, and UK1G boxes.
- PoE+ Upgradable – Add the Connect PoE+ Network Adapter for power and hardwired internet over one cable.
Specifications
| Specification | Value |
|---|---|
| Dimensions | 4.97" × 4.97" × 0.78" (126.24 × 126.24 × 19.81 mm) |
| Weight | 0.17 lbs (0.08 kg) |
| Input Voltage | 9–24VDC/1.67A |
| Output Voltage | 5.3VDC/3A; 9VDC/3A |
| Interface | TE connector input |
| Colors | Black, White (textured finish) |
| Operating Temperature | 32°F to 95°F |
| Operating Humidity | 5% to 95% |
| Certifications | FCC Part 15B Class B, AS/NZS 60950, CISPR22, EN 55032, BS EN 55035 |
| Warranty | 1 year |
What's Included
- Connect Pro WallStation unit
- RJ-45-TE cable
- RJ45-DC cable
- TE-Phoenix cable
- Security tool
- Mounting hardware
- Power supply
- Information card
