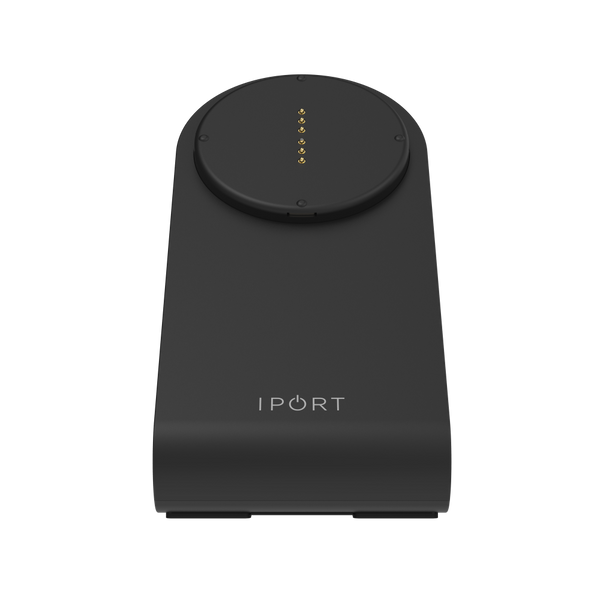

iPort Connect Pro BaseStation
Brian Long
Secure Tabletop Mounting and Charging
The Connect Pro BaseStation provides secure, magnetic table-top mounting for iPad in a Connect Pro Case, charging at a 45-degree ergonomic angle in either portrait or landscape orientation. A key-based lock secures the iPad on station, and the standard power supply can be upgraded to PoE+ for a single hardwired cable run.
Features
- Magnetic Mounting – Secure table-top placement in portrait or landscape.
- Ergonomic Angle – 45-degree viewing angle for point-of-sale and kiosk use.
- Key-Based Lock – Temporary locking keeps iPad secured on station.
- Wireless Charging – 5V/3A conductive charging through the Connect Pro Case.
- PoE+ Upgradable – Add the Connect PoE+ Network Adapter for power and hardwired internet over a single cable.
Specifications
| Specification | Value |
|---|---|
| SKU | 72353 |
| Dimensions | 3.48" × 5.85" × 7.01" (88.39 × 148.59 × 178.05 mm) |
| Weight | 4.75 lbs (2.15 kg) |
| Power Input | 9–24VDC/1.67A |
| Power Output | 5.3VDC/3A or 9VDC/3A |
| Colors | Black, White (textured finish) |
| Operating Temperature | 32°F to 95°F |
| Operating Humidity | 5% to 95% |
| Warranty | 1 year |
What's Included
- Connect Pro BaseStation unit
- Security tool
- Mounting hardware
- Information card
- Power supply with international plug adapters (A, C, G, I)
