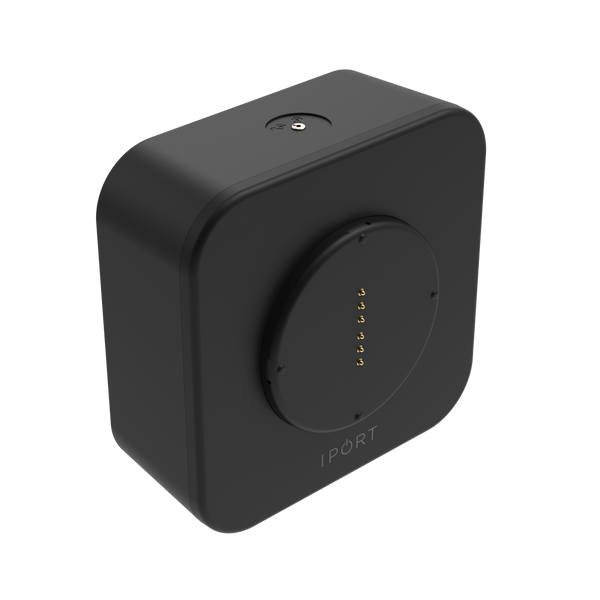

iPort Connect Pro VESA Station
Brian Long
Rugged, VESA-Compatible Charging and Mounting
The Connect Pro VESA Station is engineered for demanding environments — warehouses, medical settings, and rugged industrial applications. It combines charging with an integrated lock for secured iPad mounting on any standard VESA arm or stand, supporting both 100x100mm and 75x75mm patterns.
Features
- Integrated Lock – Prevents unauthorized removal of the mounted iPad.
- Dual VESA Compatibility – Supports both 100x100mm and 75x75mm mounting patterns.
- Hardwired Power – Compatible with 12V or 24V hardwired power delivery.
- Built for Harsh Environments – Rugged construction for industrial and medical settings.
Specifications
| Specification | Value |
|---|---|
| Dimensions | 5.0" × 5.0" × 2.25" (127 × 127 × 57.15 mm) |
| Weight | 0.95 lbs (0.43 kg) |
| Input Voltage | 9–24VDC/1.67A |
| VESA Patterns | 100x100mm, 75x75mm |
| Colors | Black, White (textured finish) |
| Operating Temperature | 32°F to 95°F |
| Operating Humidity | 5% to 95% |
| Certifications | FCC Part 15B Class B, EN/AS standards |
| Warranty | 1 year |
What's Included
- Connect Pro VESA Station unit
- Security tool
- Mounting hardware
- Information card
- Power supply with international plug adapters (A, C, G, I)
