Ubiquiti UniFi Products

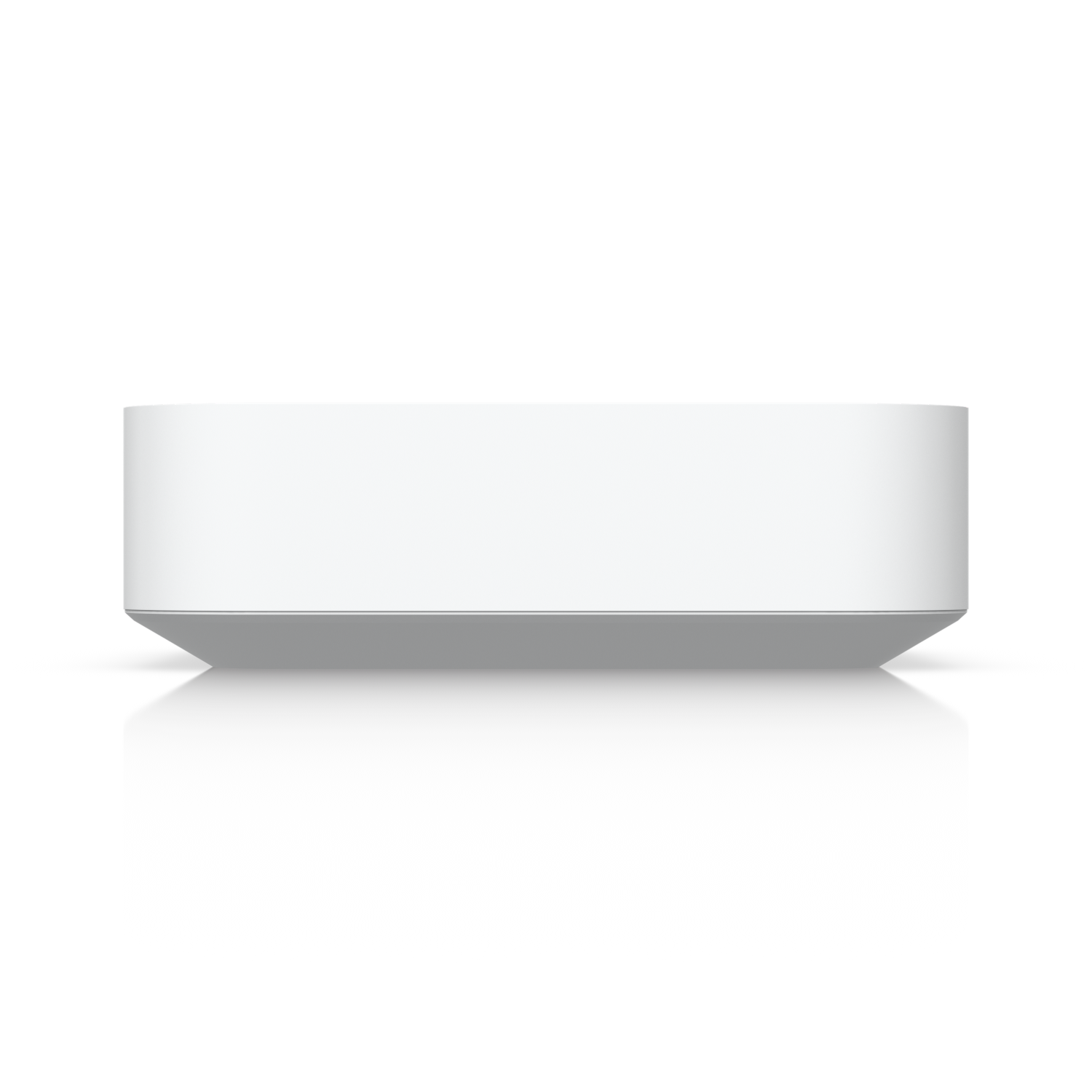

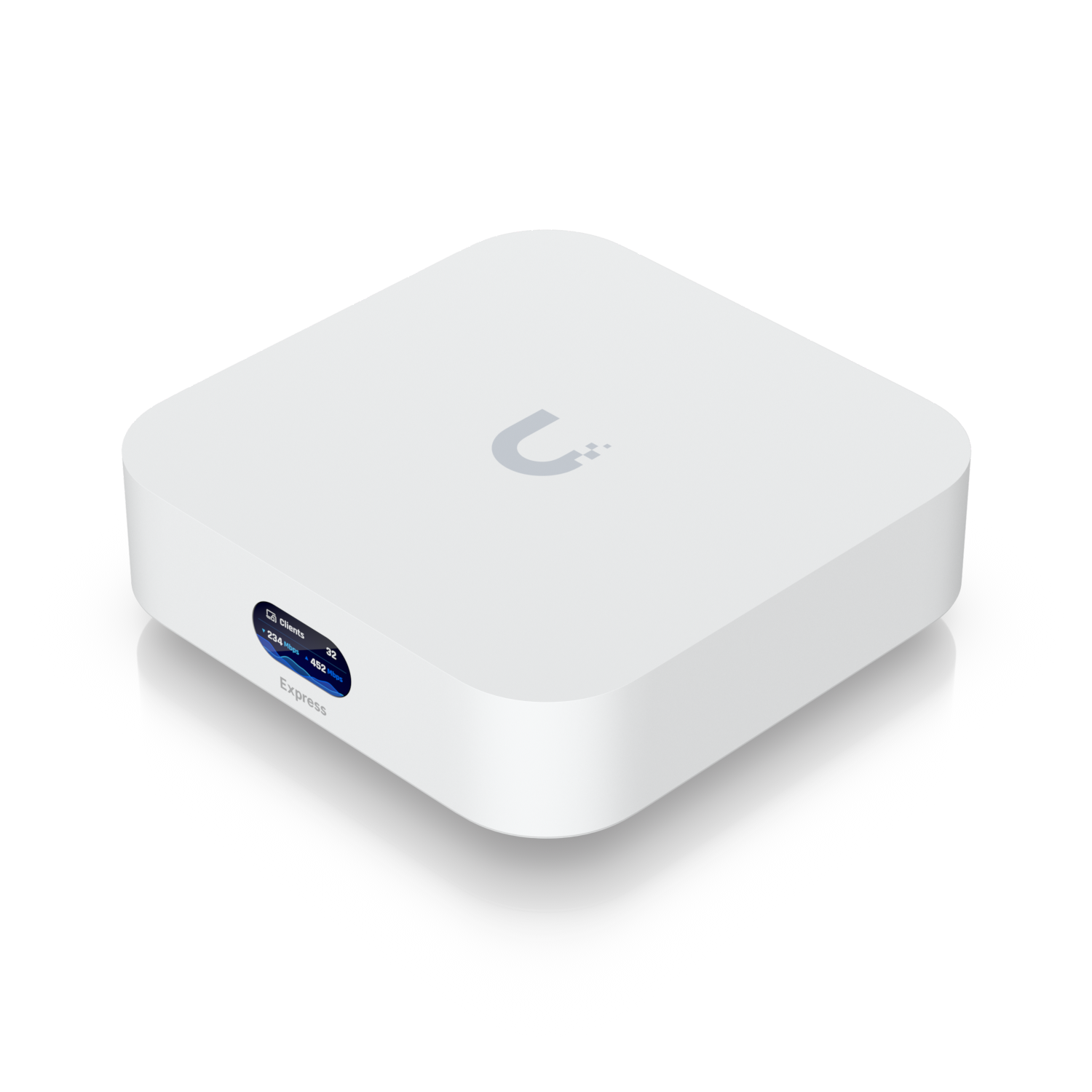

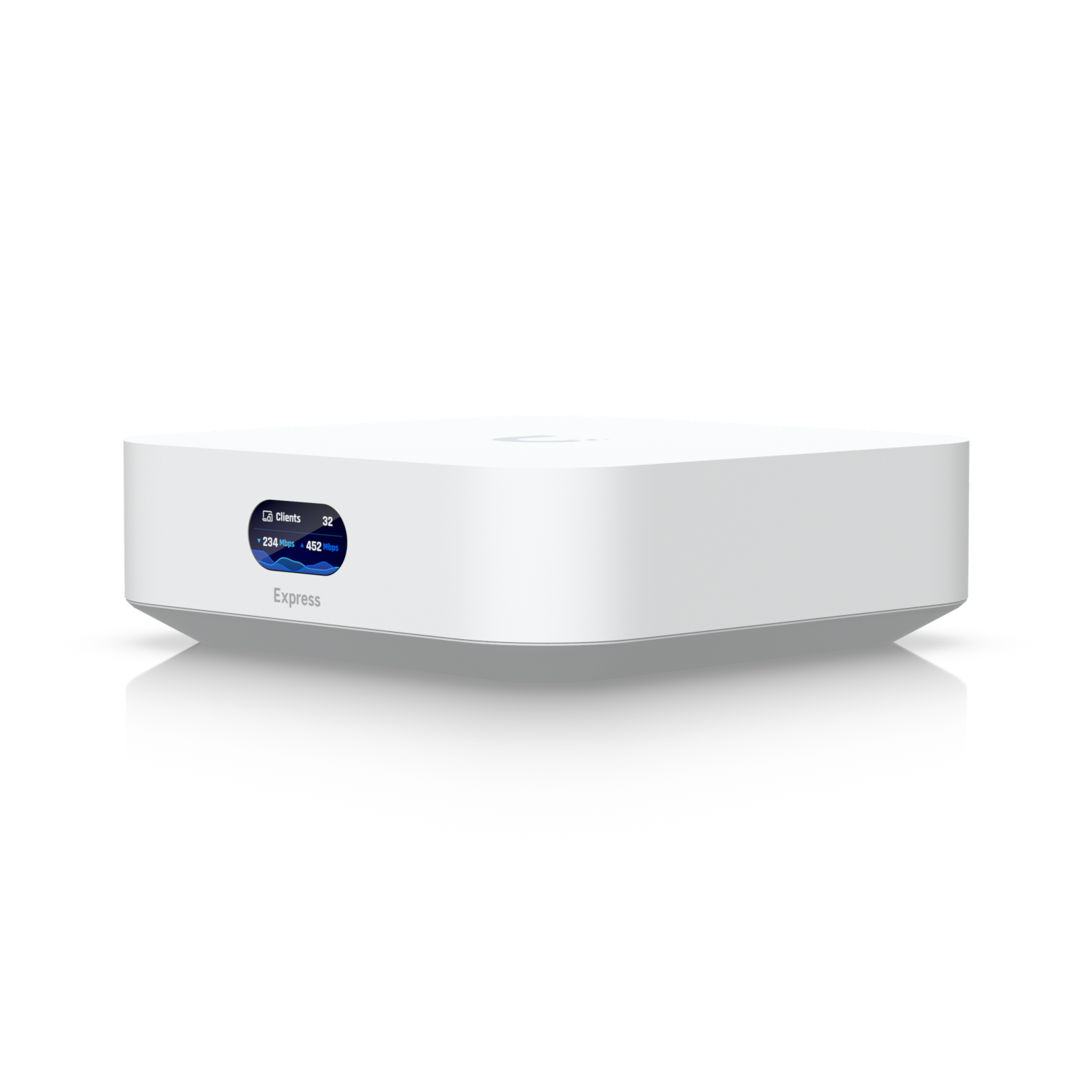

UniFi Express

Product Introduction

The UniFi Express is an impressively compact Cloud Gateway and WiFi 6 Access Point designed to either power an entire network or seamlessly integrate as a mesh AP. Its sleek design and advanced features make it an ideal choice for both small and medium-sized deployments.

Product Gallery

Features

Compact Design: Measuring just 98 x 98 x 30 mm, the UniFi Express is designed to fit seamlessly into any environment.
Dual-Band WiFi 6: Supports 2x2 MU-MIMO with maximum TX power of 22 dBm on 2.4 GHz and 25 dBm on 5 GHz bands.
Advanced Security: Features application-aware firewall rules, content filtering, and full stateful firewall capabilities.
Versatile Deployment: Can function as a standalone gateway or mesh with other UniFi devices as an access point.
User-Friendly Management: Managed via Ethernet or Bluetooth with a 0.96" status display for easy monitoring.

Specifications

Specification	Details
Dimensions	98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight	302 g (10.7 oz)
Enclosure Material	Polycarbonate
Networking Interface	LAN: (1) GbE RJ45 portWAN: (1) GbE RJ45 port
Power Method	USB Type-C (5V DC/3A)
Max. Power Consumption	10W
Max. TX Power	2.4 GHz: 22 dBm5 GHz: 25 dBm
MIMO	2.4 GHz: 2x2 (DL/UL MU-MIMO)5 GHz: 2x2 (DL/UL MU-MIMO)
Throughput Rate	2.4 GHz: 573.5 Mbps5 GHz: 2.4 Gbps
Antenna Gain	2.4 GHz: 4 dBi5 GHz: 5.15 dBi
Ambient Operating Temperature	-10 to 45° C (14 to 113° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC

Manuals and Documents

Datasheet - Comprehensive technical specifications and features.
Installation Guide - Step-by-step instructions for setup and deployment.
FAQ - Answers to common questions and troubleshooting tips.

For more information, visit the UniFi Express Tech Specs page.

UniFi Gateway Lite

The UniFi Gateway Lite (UXG-Lite) is a compact and powerful gateway designed to deliver advanced routing and security features for small to medium-sized networks. With its dual-core ARM Cortex-A53 processor running at 1 GHz and 1 GB DDR3L memory, it ensures efficient network performance and management.

This gateway features one Gigabit Ethernet WAN port and one Gigabit Ethernet LAN port, providing seamless connectivity for your network devices. Its compact design and USB-C power method make it easy to integrate into various network setups.

UniFi Gateway Max

The UniFi Gateway Max (UXG-Max) is a high-performance gateway designed to deliver advanced routing and security features for medium to large-sized networks. Equipped with a quad-core ARM Cortex-A53 processor running at 1.5 GHz and 2 GB DDR4 memory, it ensures efficient network performance and management.

This gateway features one 2.5 GbE RJ45 WAN port and four 2.5 GbE RJ45 LAN ports, providing seamless high-speed connectivity for your network devices. Its compact design and USB-C power method allow for easy integration into various network setups.
