UniFi U7 Pro Outdoor Access Point
Brian Long
The UniFi U7 Pro Outdoor is Ubiquiti’s latest outdoor Wi-Fi 7 access point, engineered to provide superior wireless performance in challenging outdoor environments. With support for the 6 GHz band, it offers interference-free connectivity, ensuring optimal performance for modern applications.
Equipped with 2x2 MU-MIMO on the 2.4 GHz, 5 GHz, and 6 GHz bands, the U7 Pro Outdoor delivers impressive data rates across its tri-band configuration:
- 2.4 GHz: Up to 688 Mbps
- 5 GHz: Up to 4.3 Gbps
- 6 GHz: Up to 5.7 Gbps
This ensures high-speed connectivity for a multitude of devices, supporting over 300 concurrent clients, making it ideal for large-scale outdoor deployments.
The U7 Pro Outdoor is powered via PoE+, simplifying installation by utilizing existing network infrastructure. Its weather-resistant IPX6-rated enclosure ensures reliable performance in various environmental conditions, with flexible mounting options for wall, ceiling, or pole installations.
Managed through the intuitive UniFi Network Controller, the U7 Pro Outdoor offers centralized management and monitoring of all network devices, ensuring streamlined network administration.
- Tri-band Wi-Fi 7 technology with 2x2 MU-MIMO on 2.4 GHz, 5 GHz, and 6 GHz bands
- Aggregate data rate up to 10.7 Gbps
- Supports over 300 concurrent clients
- Weather-resistant IPX6-rated enclosure for outdoor use
- Powered via PoE+ for simplified installation

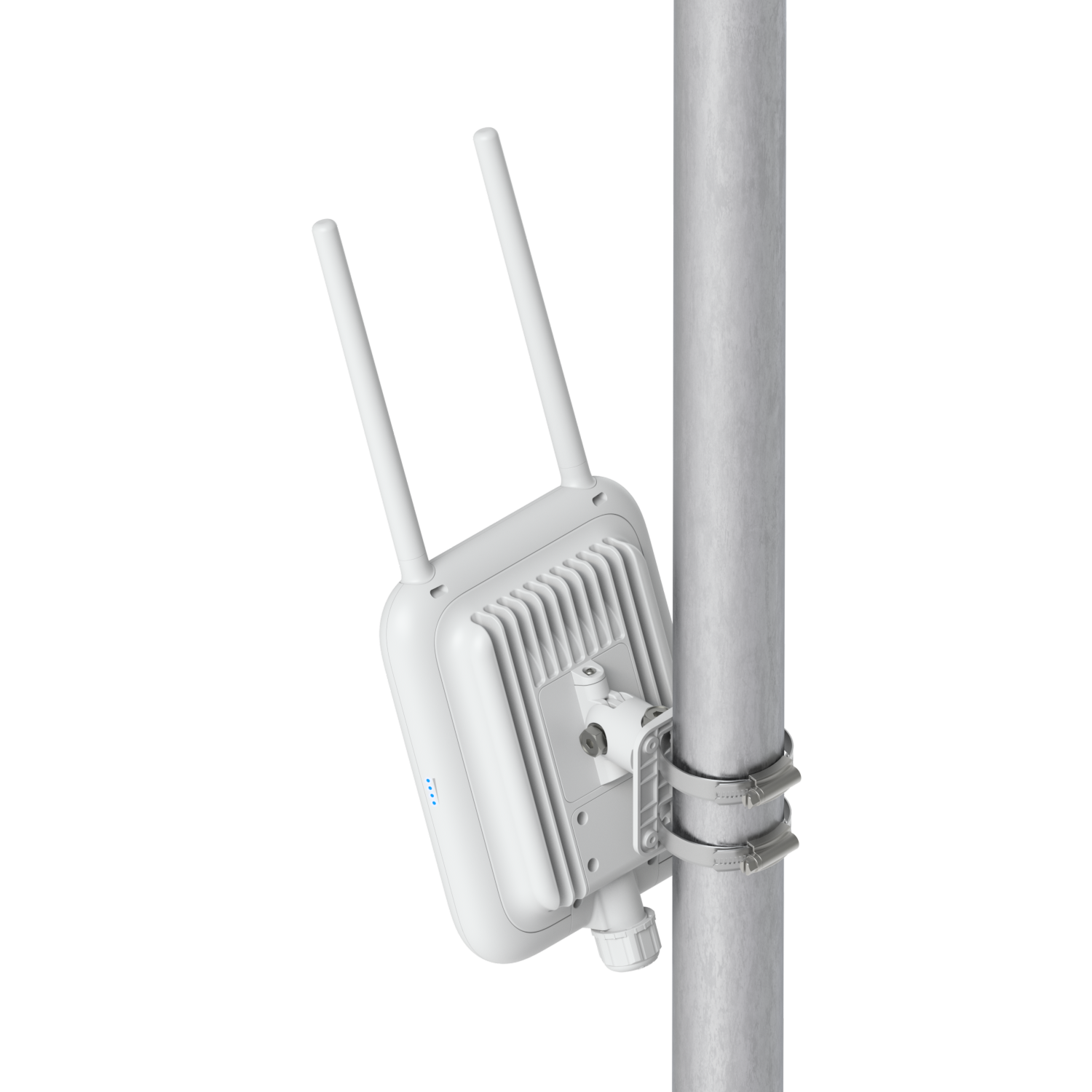

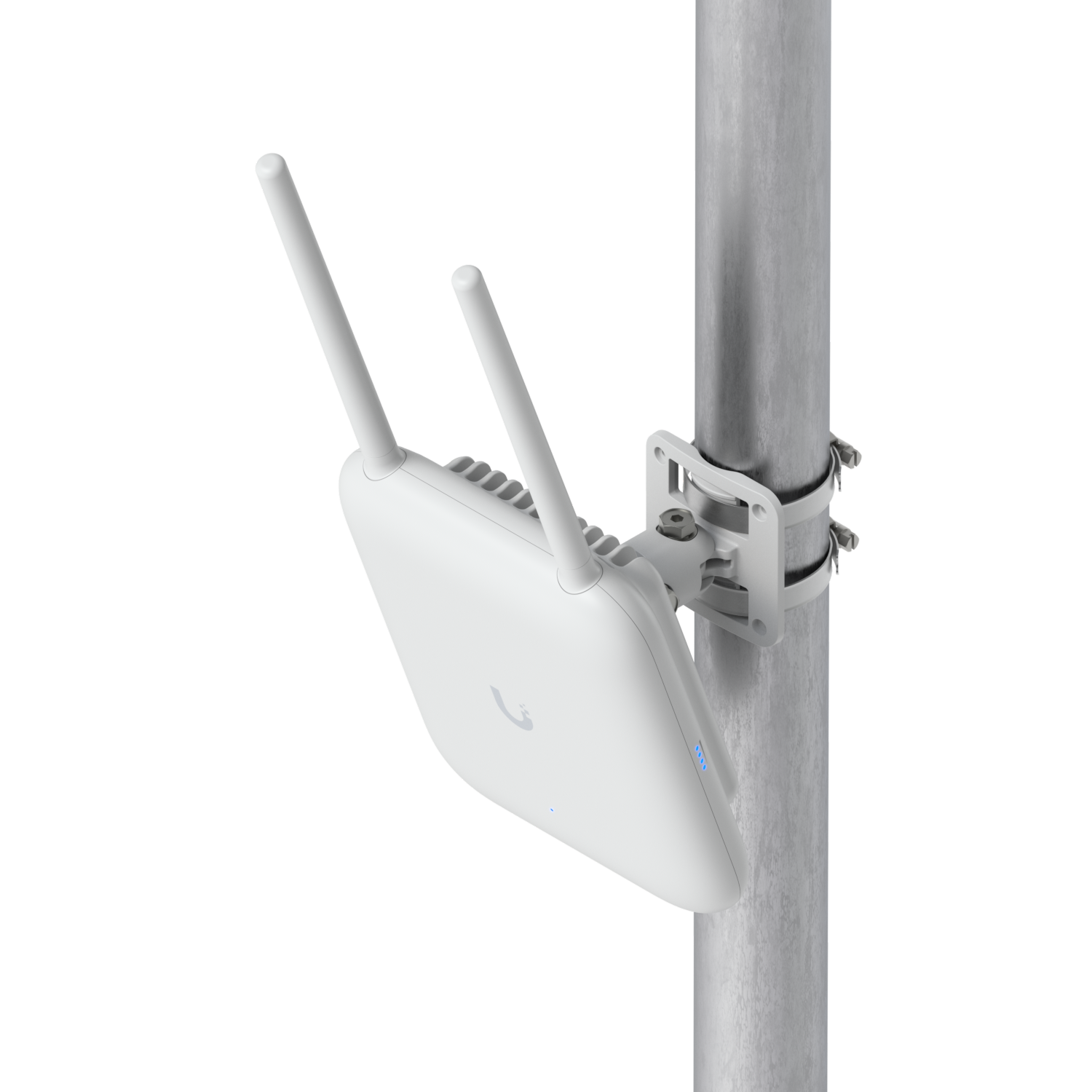

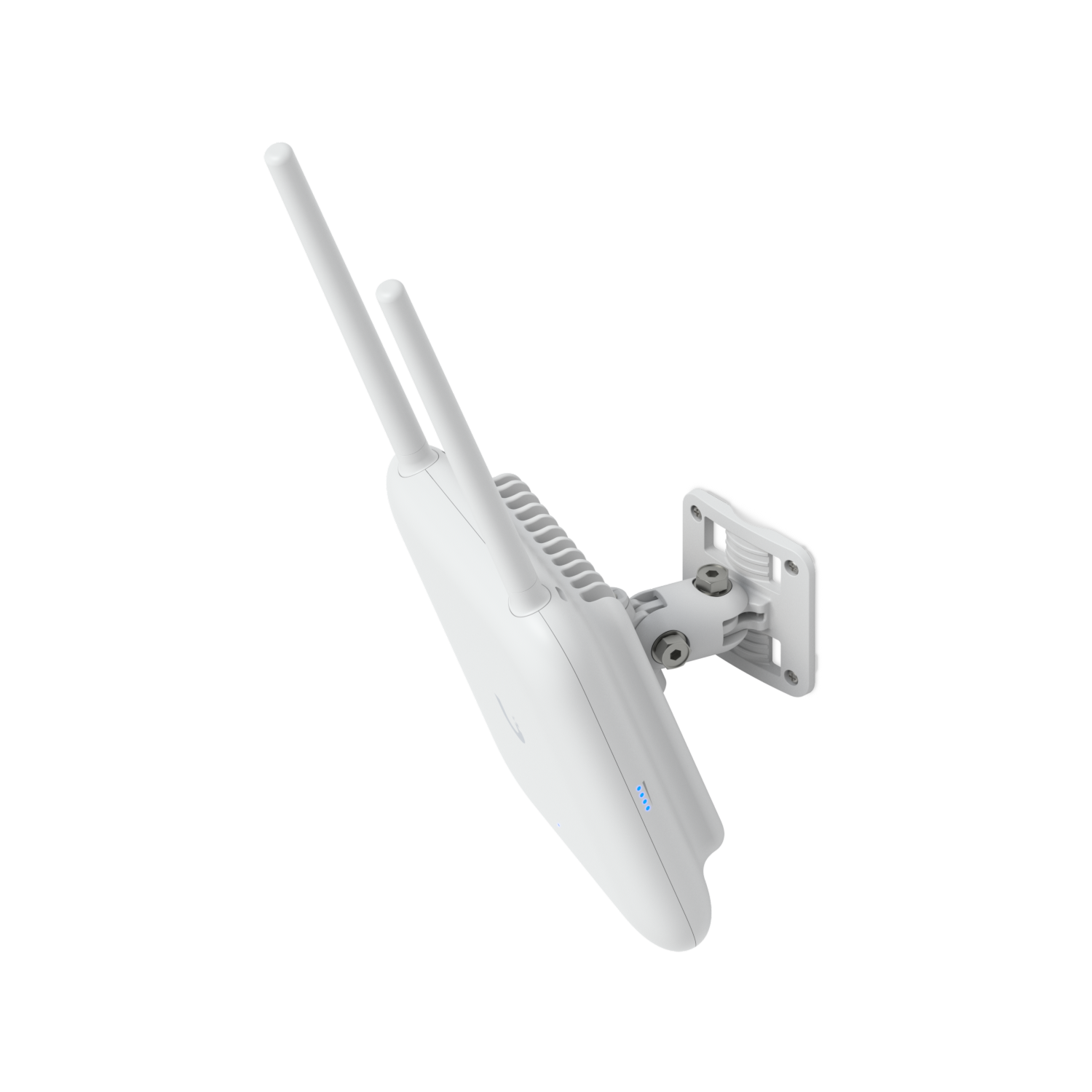

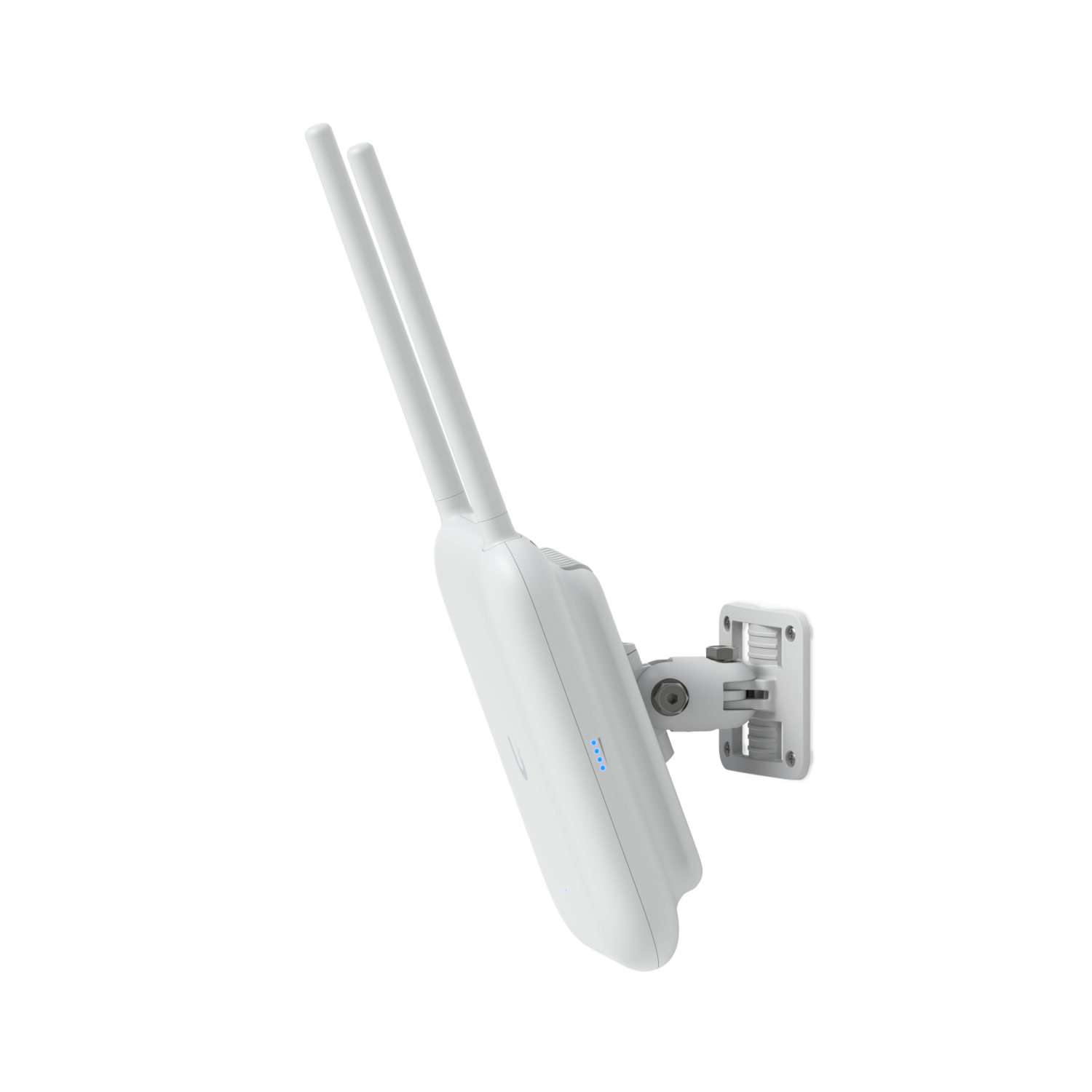

- Flexible mounting options for wall, ceiling, or pole installations
- Managed through UniFi Network Controller
| Specification | Value |
|---|---|
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| Weight | Device: 1.2 kg (2.6 lb)Mount: 130 g (0.3 lb) |

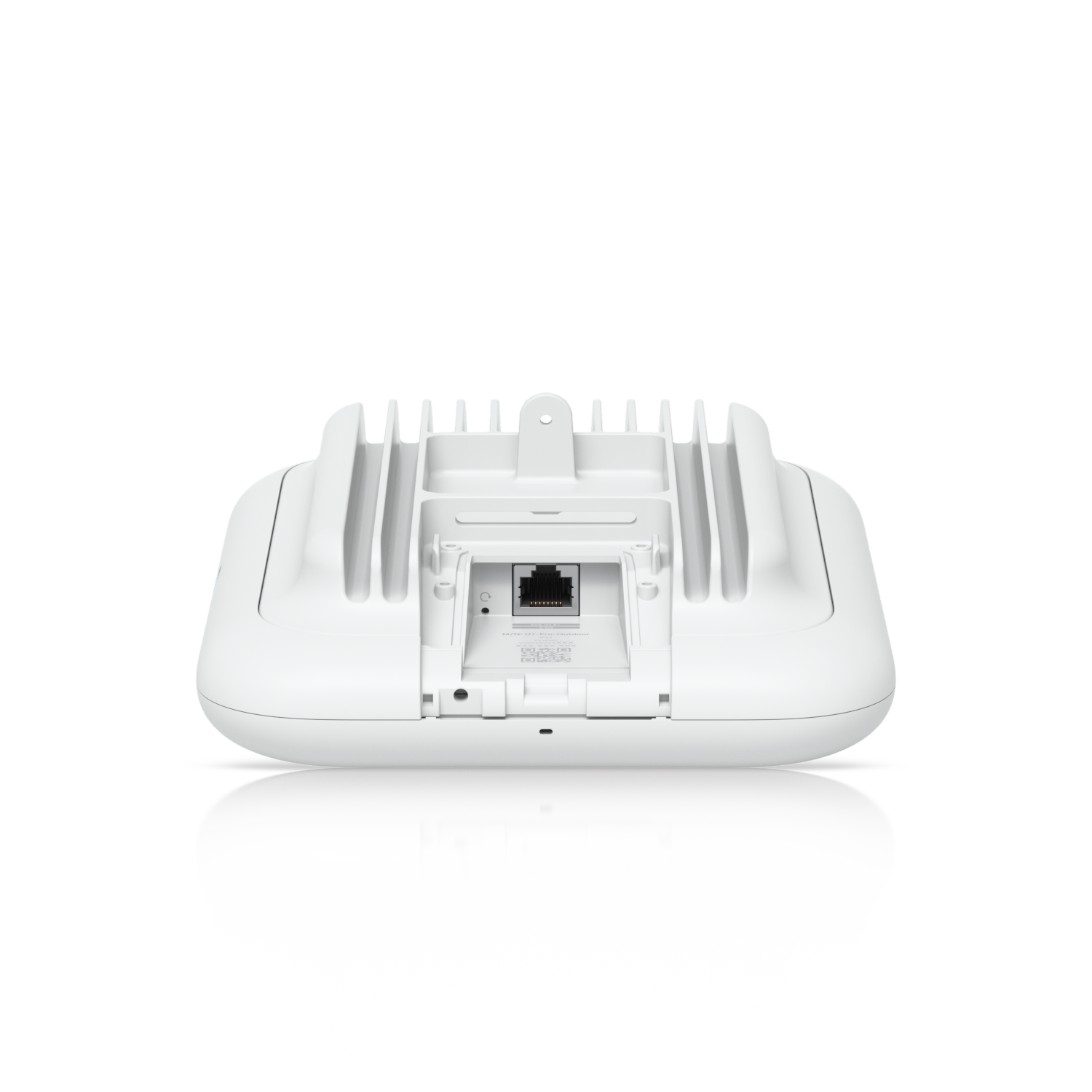

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Max. Power Consumption | 21W |
| Max. TX Power | 2.4 GHz: 23 dBm5 GHz: 26 dBm6 GHz: 26 dBm (with Extended Range mode; available in FCC/IC region only) |
| Antenna Gain | Directional internal: 2.4 GHz: 8 dBi / 5 GHz: 11 dBi / 6 GHz: 10 dBiExternal omni: 2.4 GHz: 6 dBi / 5 GHz: 8 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7) |
| Concurrent Clients | 300+ |
| Weatherproofing | IPX6 (IP67 with cable-gland door kit included) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
