Shure MXW8W Gooseneck Base Transmitter

By Brian Long

Introduction

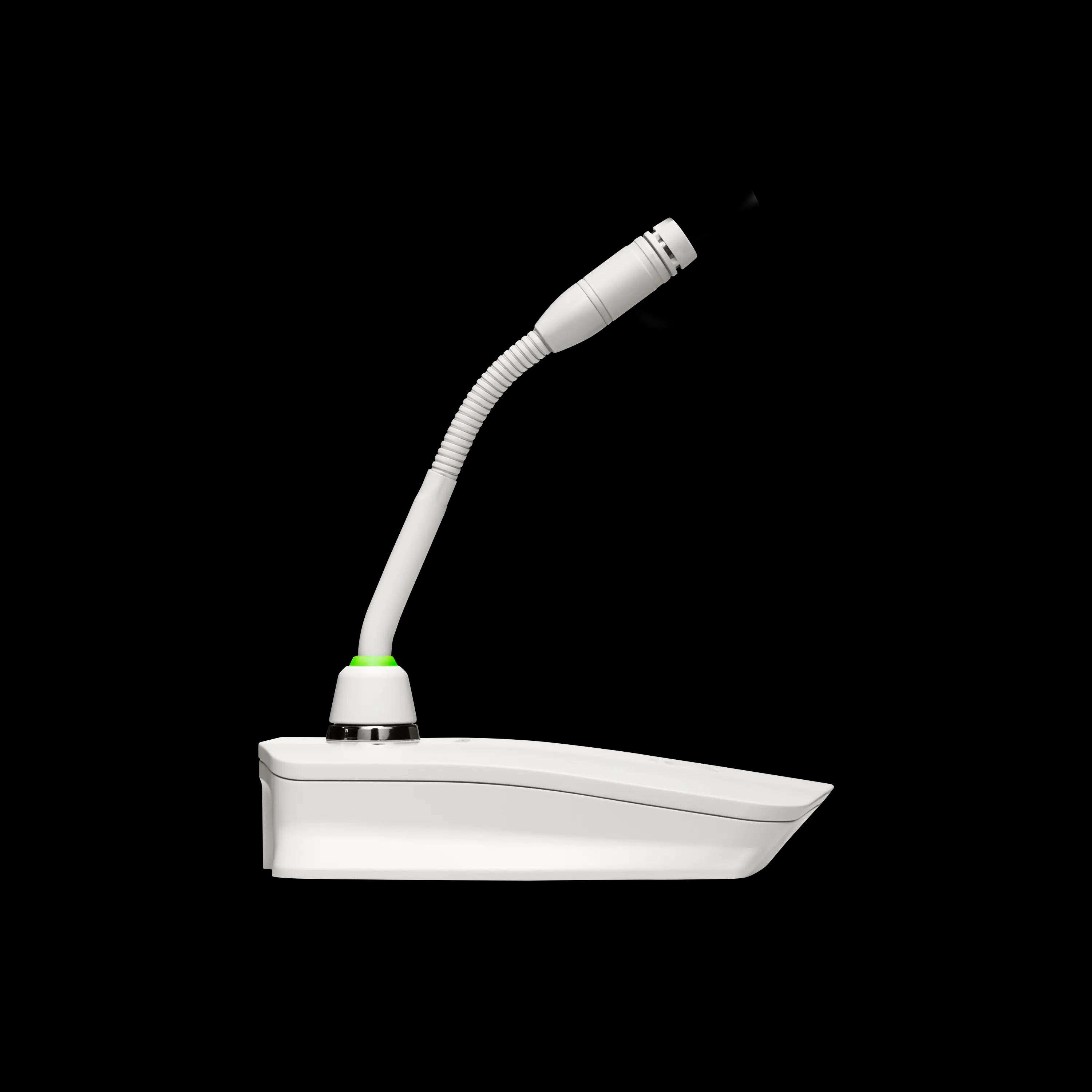

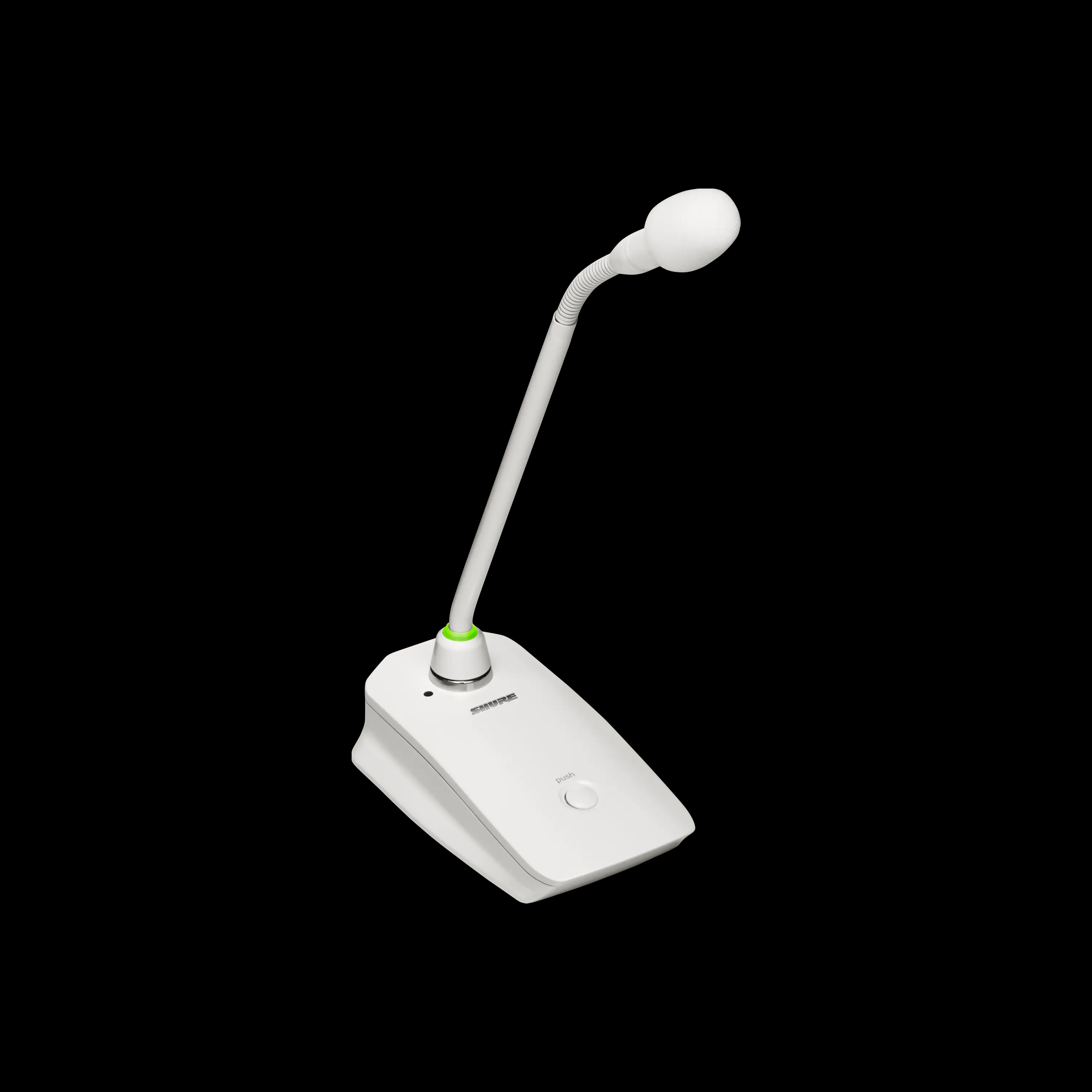

The Shure MXW8W Gooseneck Base Transmitter is a wireless audio solution with a sleek white finish, designed for professional AV conferencing and presentation spaces. It supports a variety of Shure gooseneck microphones, delivering clear and focused audio with reliable performance.

Part of the Microflex® Wireless System, the MXW8W features AES256 encryption for secure communication, bi-directional wireless control, and advanced lithium-ion batteries providing up to 9 hours of runtime. Its discreet and elegant design ensures it integrates seamlessly into modern AV environments.

Available Models

The MXW8 Gooseneck Base Transmitter is available in the following models:

  • MXW8: Black finish for seamless integration into professional AV setups.
  • MXW8W: White finish for discreet placement in modern and minimalist environments.

Optional Accessories

The following optional accessories are compatible with the MXW8 Gooseneck Base Transmitter:

  • SBC-USB: USB Plug-in Charger
  • SB901A: Replacement Lithium-Ion Rechargeable Battery
  • A8WS: Foam Windscreen for Gooseneck Microphones
  • RK183WS: Windscreen for MX405, MX410, and MX415 microphones

Microphone Options

The MXW8 is compatible with a wide range of Shure gooseneck microphones, available in different lengths, polar patterns, and finishes:

MX405 (5-inch Gooseneck Microphones)

  • MX405WLP/N: No microphone cartridge, bi-color status indicator, less preamp, white finish
  • MX405WRLP/N: No microphone cartridge, light ring, less preamp, white finish

MX410 (10-inch Gooseneck Microphones)

  • MX410WLP/N: No microphone cartridge, bi-color status indicator, less preamp, white finish
  • MX410WRLP/N: No microphone cartridge, light ring, less preamp, white finish
  • MX410WLPDF/N: No microphone cartridge, dual flex gooseneck, bi-color status indicator, less preamp, white finish
  • MX410WRLPDF/N: No microphone cartridge, dual flex gooseneck, light ring, less preamp, white finish

MX415 (15-inch Gooseneck Microphones)

  • MX415WLP/N: No microphone cartridge, bi-color status indicator, less preamp, white finish
  • MX415WRLP/N: No microphone cartridge, light ring, less preamp, white finish
  • MX415WLPDF/N: No microphone cartridge, dual flex gooseneck, bi-color status indicator, less preamp, white finish
  • MX415WRLPDF/N: No microphone cartridge, dual flex gooseneck, light ring, less preamp, white finish

Features and Specifications

Features
  • White finish for seamless integration into AV environments
  • Compatible with a variety of Shure gooseneck microphones (MX405, MX410, MX415, etc.)
  • Sleek, contoured design for professional presentation spaces
  • AES256 encrypted wireless transmission for secure communication
  • Bi-directional wireless for real-time remote control of settings and LED light ring
  • Programmable mute button with customizable behavior
  • Standby mode to conserve battery life during inactivity
  • Reliable wireless range of up to 50 meters (160 feet)
  • Advanced rechargeable lithium-ion battery with up to 9 hours of runtime
  • USB charging for convenient power management
Specifications
Specification Value
Microphone Connector 6-pin connector for Shure gooseneck microphones
Finish White
Frequency Range 1920–1930 MHz (Z10); 1880–1900 MHz (Z11)
Battery Type Rechargeable Li-Ion
Battery Life Up to 9 hours
Working Range 50 meters (160 feet)
Dimensions (H × W × D) 36 mm × 71 mm × 124 mm (1.4 in. × 2.8 in. × 4.9 in.)
Weight 193 g (6.8 oz.) with batteries
Charge Connector USB 3.0 Type A
Operating Temperature Range 0°C (32°F) to 49°C (120°F)
Storage Temperature Range −29°C (−20°F) to 74°C (165°F)
Encryption AES256
