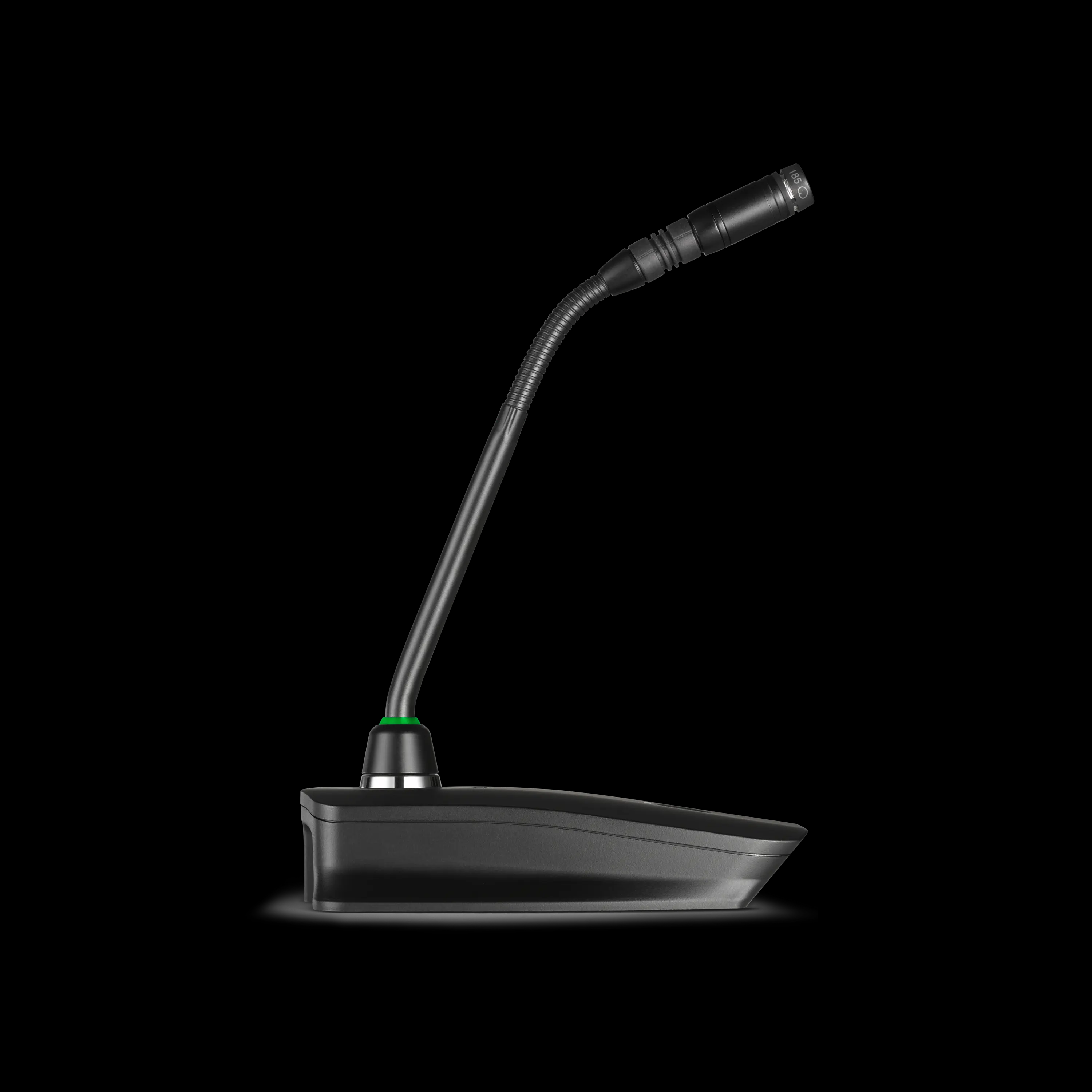

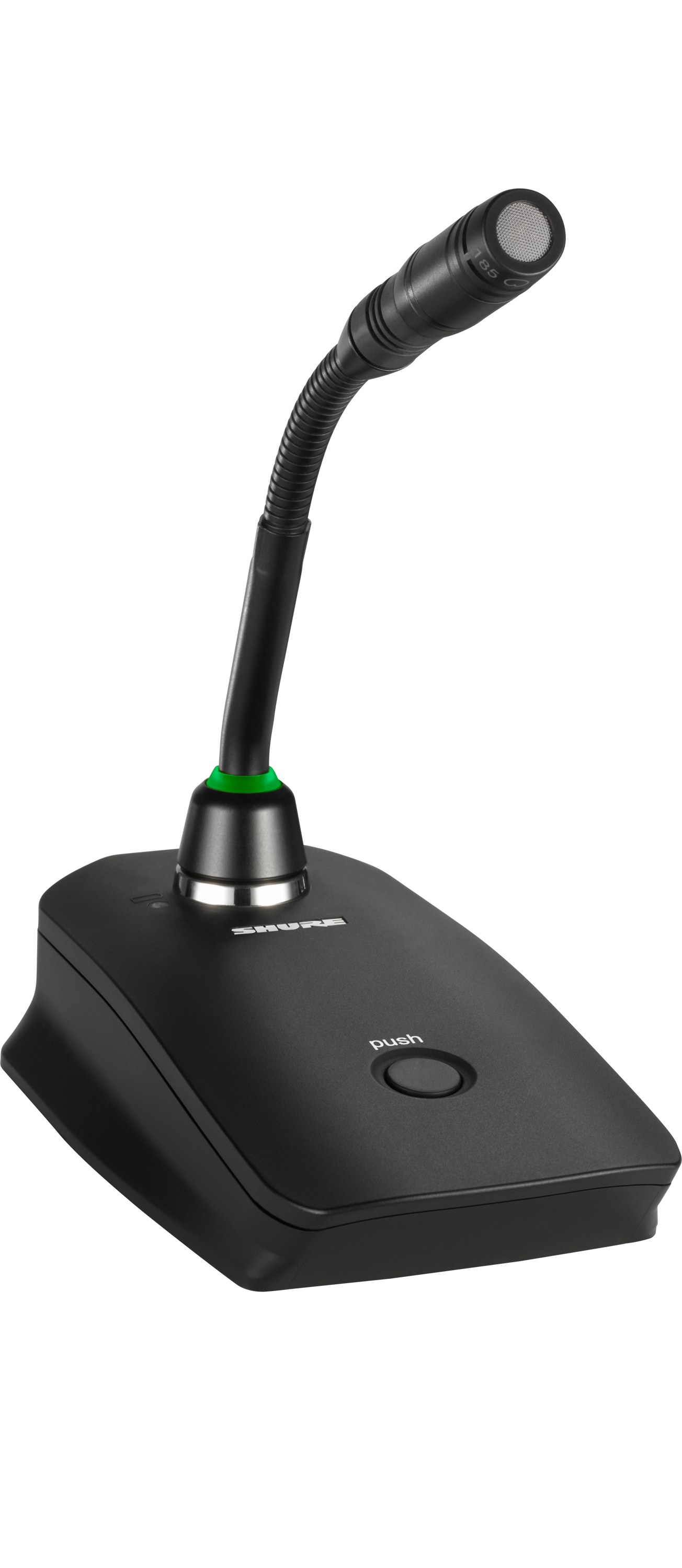

Shure MXW8 Gooseneck Base Transmitter

By Brian Long

Introduction

The Shure MXW8 Gooseneck Base Transmitter is part of the Microflex® Wireless System, delivering secure, wireless audio for professional AV conferencing and presentation spaces. Compatible with a wide range of Shure gooseneck microphones, the MXW8 is designed to provide clear, focused audio while seamlessly integrating into modern AV environments.

Equipped with AES256 encryption, bi-directional wireless control, and an advanced rechargeable battery providing up to 9 hours of continuous use, the MXW8 ensures reliable, high-performance audio for enterprise applications.

Available Models

The MXW8 Gooseneck Base Transmitter is available in the following models:

  • MXW8: Black finish for seamless integration into professional AV setups.
  • MXW8W: White finish for discreet placement in modern and minimalist environments.

Optional Accessories

The following optional accessories are compatible with the MXW8 Gooseneck Base Transmitter:

  • SBC-USB: USB Plug-in Charger
  • SB901A: Replacement Lithium-Ion Rechargeable Battery
  • A8WS: Foam Windscreen for Gooseneck Microphones
  • RK183WS: Windscreen for MX405, MX410, and MX415 microphones

Microphone Options

The MXW8 is compatible with a wide range of Shure gooseneck microphones, available in different lengths, polar patterns, and finishes:

MX405 (5-inch Gooseneck Microphones)

  • MX405LP/C: Cardioid, bi-color status indicator, less preamp
  • MX405LP/S: Supercardioid, bi-color status indicator, less preamp
  • MX405RLP/N: No microphone cartridge, light ring, less preamp

MX410 (10-inch Gooseneck Microphones)

  • MX410LP/C: Cardioid, bi-color status indicator, less preamp
  • MX410LP/S: Supercardioid, bi-color status indicator, less preamp
  • MX410RLP/N: No microphone cartridge, light ring, less preamp

MX415 (15-inch Gooseneck Microphones)

  • MX415LP/C: Cardioid, bi-color status indicator, less preamp
  • MX415LP/S: Supercardioid, bi-color status indicator, less preamp
  • MX415RLP/N: No microphone cartridge, light ring, less preamp

Features and Specifications

Features
  • Compatible with Shure gooseneck microphones for tailored audio performance
  • Sleek, low-profile design for professional AV environments
  • AES256 encrypted wireless transmission for secure communication
  • Bi-directional wireless for real-time control of LED light ring and settings
  • Programmable mute button with customizable behavior
  • Standby mode to extend battery life during inactivity
  • Advanced lithium-ion rechargeable battery with up to 9 hours of runtime
  • USB charging for convenient power management
Specifications
Specification Value
Microphone Connector 6-pin connector for Shure gooseneck microphones
Finish Options Black, White
Frequency Range 1920–1930 MHz (Z10); 1880–1900 MHz (Z11)
Battery Type Rechargeable Li-Ion
Battery Life Up to 9 hours
Working Range 50 meters (160 feet)
Dimensions (H × W × D) 36 mm × 71 mm × 124 mm (1.4 in. × 2.8 in. × 4.9 in.)
Weight 193 g (6.8 oz.) with batteries
Charge Connector USB 3.0 Type A
Operating Temperature Range 0°C (32°F) to 49°C (120°F)
Storage Temperature Range −29°C (−20°F) to 74°C (165°F)
Encryption AES256
