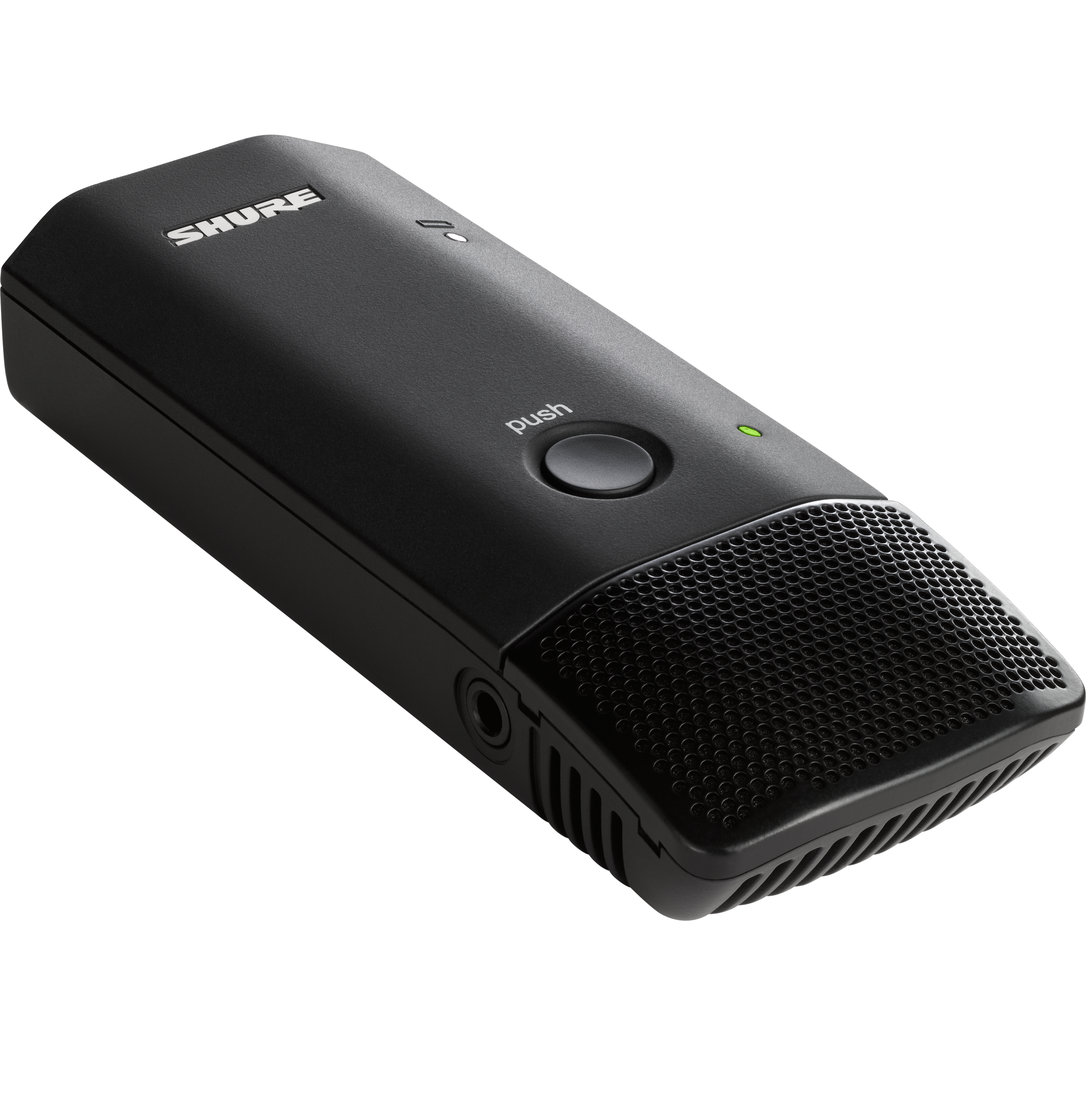

Shure MXW6/O Boundary Transmitter

By Brian Long

Introduction

The Shure MXW6/O Boundary Transmitter is a wireless, omnidirectional microphone designed for seamless audio capture in professional AV conferencing and collaboration spaces. Its low-profile design ensures discreet placement on any flat surface, while delivering superior sound quality for meetings and presentations.

Part of the Shure Microflex® Wireless System, the MXW6/O features AES256 encryption for secure transmission, bi-directional wireless for remote control, and advanced rechargeable batteries providing up to 9 hours of runtime. This transmitter is ideal for capturing clear, natural speech in a variety of conferencing applications.

Features and Specifications

Features
  • Omnidirectional microphone for full-range, natural audio capture
  • Low-profile design for discreet placement on conference tables or other flat surfaces
  • AES256 encrypted wireless transmission for secure communication
  • Bi-directional wireless for real-time remote control of settings
  • Programmable mute button with push-to-talk or push-to-mute options
  • Standby mode to extend battery life during inactivity
  • Reliable wireless working range of up to 50 meters (160 feet)
  • Advanced lithium-ion rechargeable battery with up to 9 hours of continuous use
  • USB charging for convenient operation
Specifications
Specification Value
Microphone Capsule Omnidirectional
Frequency Range 1920–1930 MHz (Z10); 1880–1900 MHz (Z11)
Battery Type Rechargeable Li-Ion
Battery Life Up to 9 hours
Working Range 50 meters (160 feet)
Dimensions (H × W × D) 23 mm × 44 mm × 114 mm (0.9 in. × 1.75 in. × 4.5 in.)
Weight 108 g (3.8 oz.) with batteries
Charge Connector USB 3.0 Type A
Operating Temperature Range 0°C (32°F) to 49°C (120°F)
Storage Temperature Range −29°C (−20°F) to 74°C (165°F)
Encryption AES256
