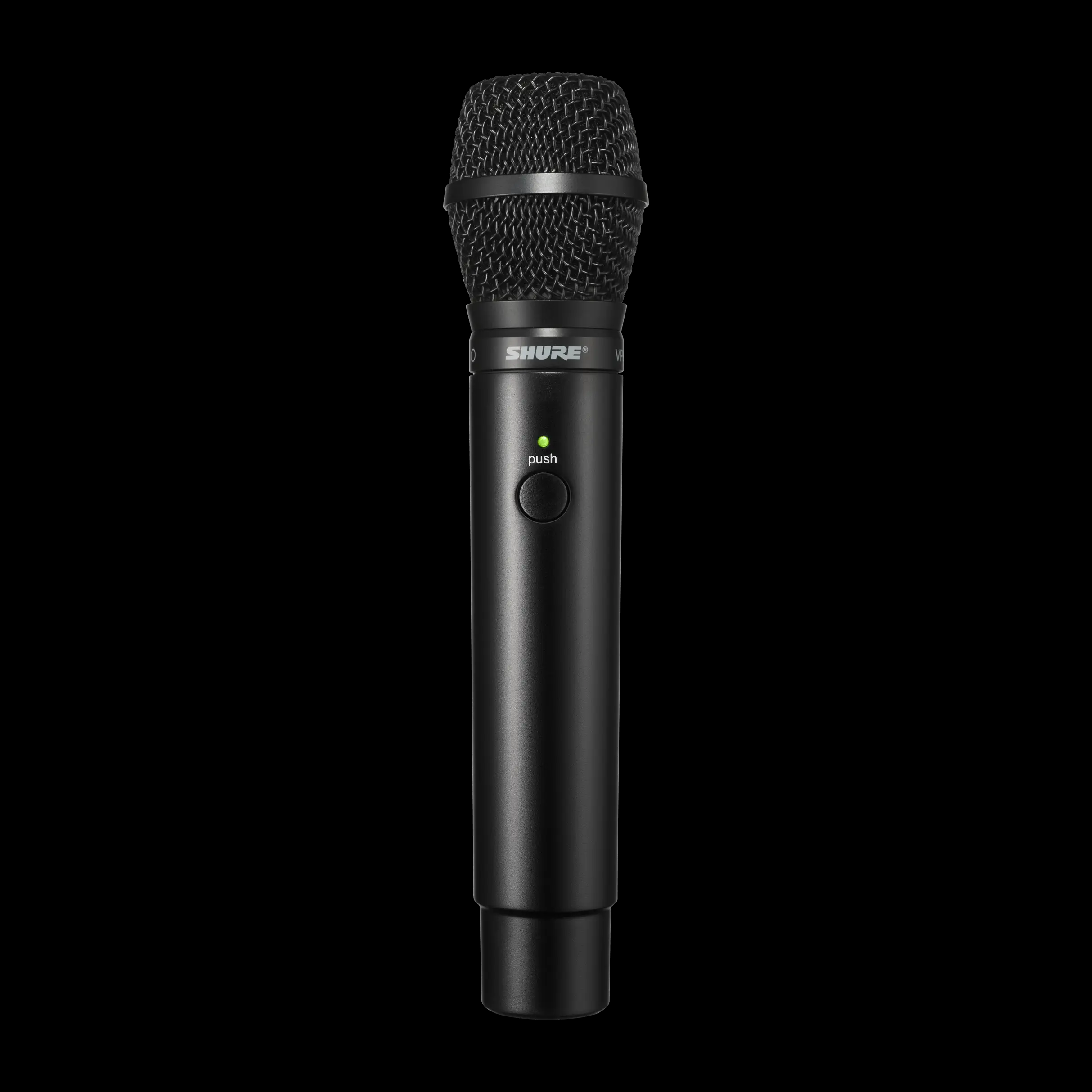

Shure MXW2/VP68 Handheld Transmitter
By Brian Long
Introduction
The Shure MXW2/VP68 Handheld Transmitter, featuring the VP68 omnidirectional microphone capsule, is designed for exceptional 360-degree audio clarity in professional AV conferencing and presentation settings. Its bi-directional wireless capability ensures seamless integration and real-time control, making it ideal for applications where mobility and consistent audio quality are essential.
With AES256 encryption, dual transmit antennas, and an advanced lithium-ion battery offering up to 15 hours of continuous use, the MXW2/VP68 delivers secure and reliable performance for any conferencing or presentation need.
Product Gallery
Features and Specifications
Features
- Equipped with the Shure VP68 omnidirectional microphone capsule for 360-degree audio capture
- Dual transmit antennas for consistent and reliable wireless performance
- Bi-directional wireless for real-time remote control of settings
- Programmable mute button with multiple configuration options
- Standby mode to extend battery life during inactivity
- Wide wireless working range up to 50 meters (160 feet)
- AES256 encrypted wireless transmission for secure communication
- Rechargeable lithium-ion battery with up to 15 hours of runtime
- USB charging for flexible operation
Specifications
| Specification | Value |
|---|---|
| Microphone Capsule | VP68 (Omnidirectional) |
| Frequency Range | 1920–1930 MHz (Z10); 1880–1900 MHz (Z11) |
| Battery Type | Rechargeable Li-Ion |
| Battery Life | Up to 15 hours |
| Working Range | 50 meters (160 feet) |
| Dimensions (L × Dia.) | 226 mm × 51 mm (8.9 in. × 2.0 in.) including VP68 capsule |
| Weight | 323 g (11.4 oz.) with batteries |
| Charge Connector | USB 3.0 Type A |
| Operating Temperature Range | 0°C (32°F) to 49°C (120°F) |
| Storage Temperature Range | −29°C (−20°F) to 74°C (165°F) |
| Encryption | AES256 |
Manuals and Documents
- Specifications Sheet - Detailed specifications for the Shure MXW2/VP68 Handheld Transmitter.
