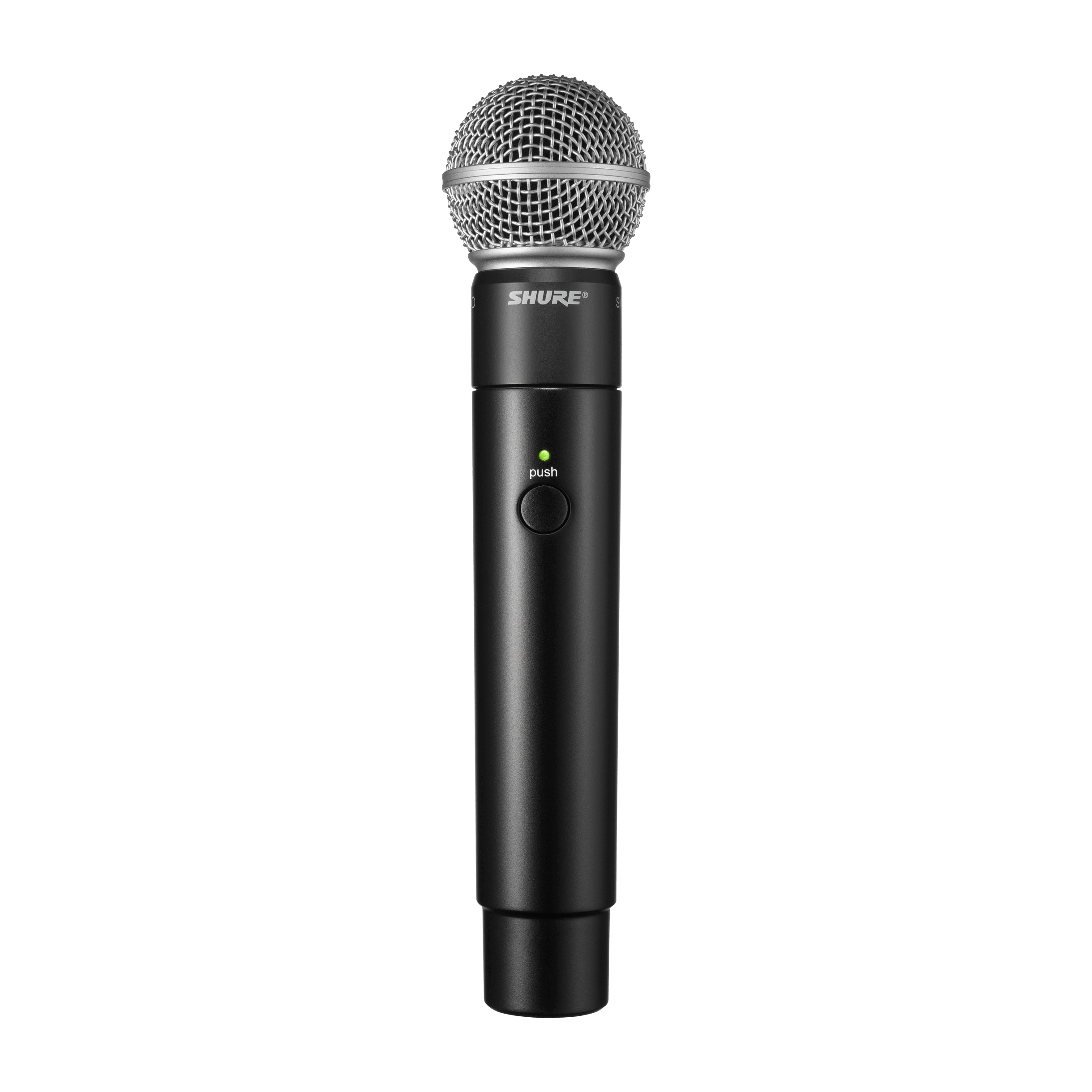

Shure MXW2/SM58 Handheld Transmitter

By Brian Long

Introduction

The Shure MXW2/SM58 Handheld Transmitter is part of the Microflex® Wireless System, offering a premium solution for wireless audio capture. Equipped with the industry-standard SM58® microphone capsule, this transmitter delivers unparalleled sound quality for speech and vocal applications in AV conferencing and presentations.

With advanced features such as bi-directional wireless control, AES256 encryption, and programmable mute functionality, the MXW2/SM58 ensures secure and seamless performance. Its durable yet lightweight design makes it ideal for professional environments, while the rechargeable lithium-ion battery provides up to 15 hours of continuous use for extended sessions.

Features and Specifications

Features
  • Equipped with the legendary Shure SM58® microphone capsule for superior audio quality
  • Dual transmit antennas for reliable wireless transmission
  • Bi-directional wireless for real-time remote control of microphone settings
  • Programmable mute button with multiple configuration options
  • Standby mode to extend battery life during inactivity
  • Wide wireless working range up to 50 meters (160 feet)
  • AES256 encrypted wireless transmission for secure communication
  • Rechargeable lithium-ion battery with up to 15 hours of continuous use
  • USB charging for convenient operation
Specifications
Specification Value
Microphone Capsule SM58®
Frequency Range 1920–1930 MHz (Z10); 1880–1900 MHz (Z11)
Battery Type Rechargeable Li-Ion
Battery Life Up to 15 hours
Working Range 50 meters (160 feet)
Dimensions (L × Dia.) 226 mm × 51 mm (8.9 in. × 2.0 in.) including SM58 capsule
Weight 323 g (11.4 oz.) with batteries
Charge Connector USB 3.0 Type A
Operating Temperature Range 0°C (32°F) to 49°C (120°F)
Storage Temperature Range −29°C (−20°F) to 74°C (165°F)
Encryption AES256
