Shure MXW2/BETA58 Handheld Transmitter
By Brian Long
Introduction

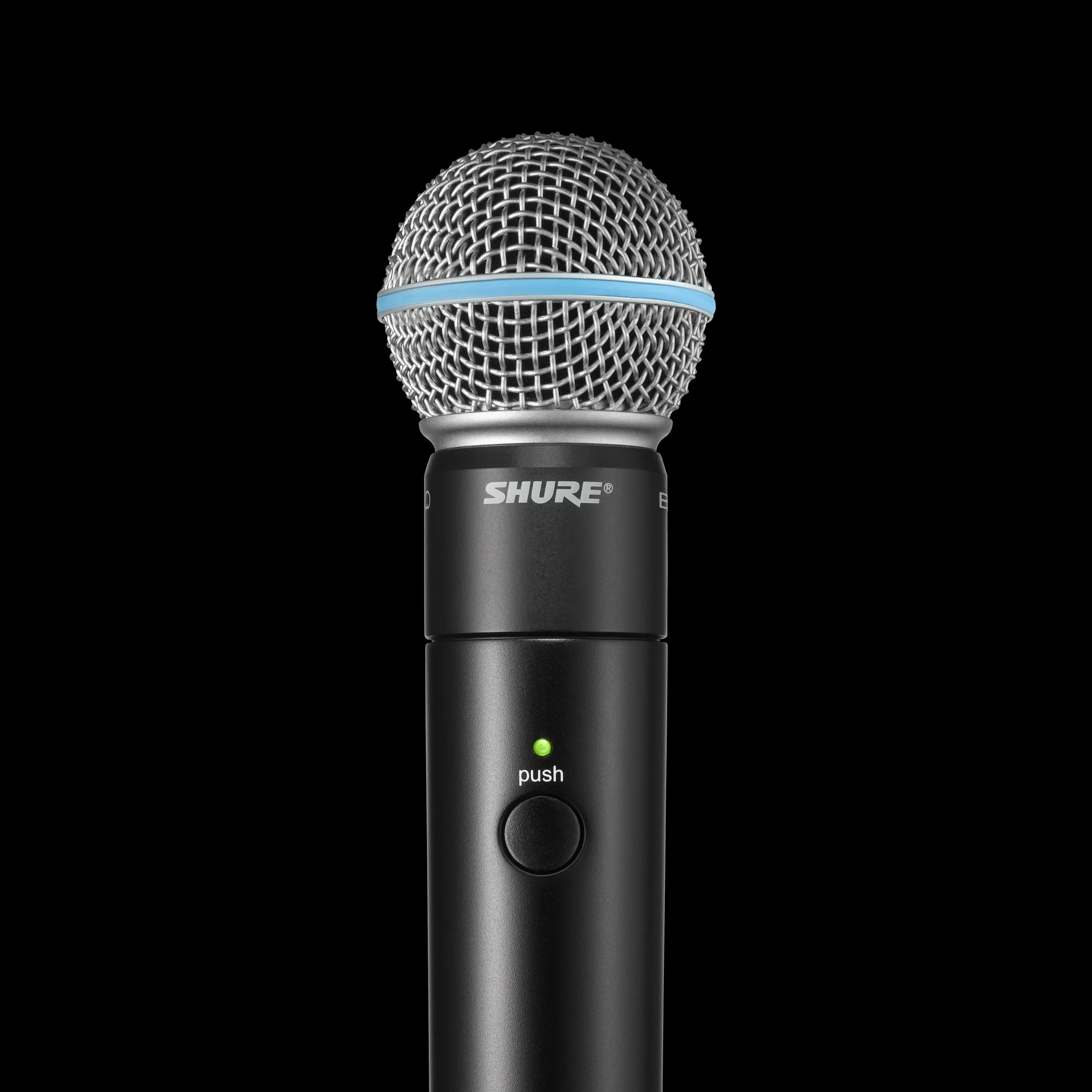

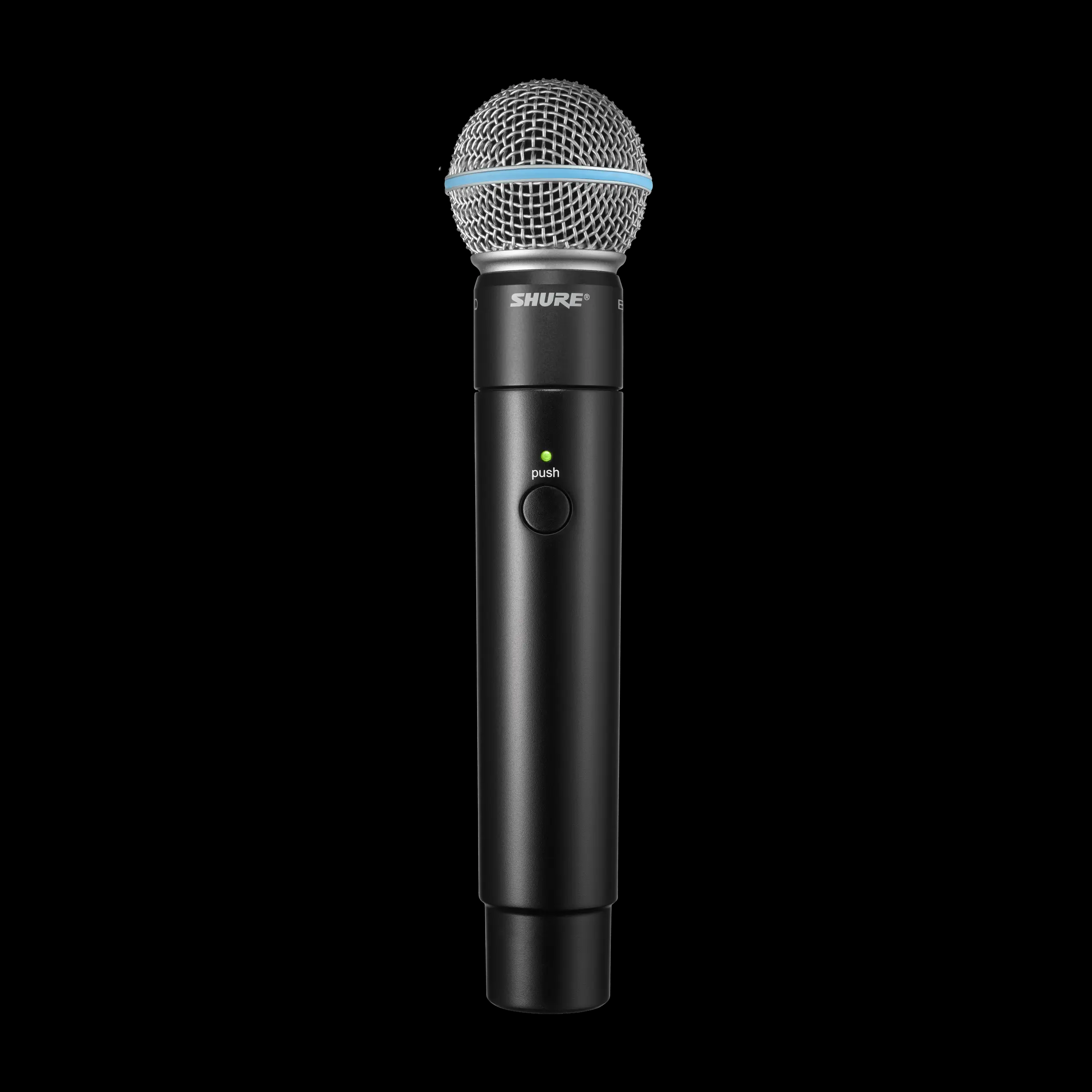

The Shure MXW2/BETA58 Handheld Transmitter is a professional-grade wireless microphone solution featuring the highly regarded BETA® 58A capsule. Designed for speech and vocal clarity, it is ideal for AV conferencing, presentations, and performance-driven applications.
This transmitter features bi-directional wireless control, dual transmit antennas for robust performance, and AES256 encryption for secure audio transmission. The advanced rechargeable lithium-ion battery provides up to 15 hours of continuous operation, ensuring reliability during long sessions.
Product Gallery
Features and Specifications
Features
- Equipped with the Shure BETA® 58A microphone capsule for precise and clear audio
- Dual transmit antennas for enhanced wireless reliability
- Bi-directional wireless for real-time remote control of settings
- Programmable mute button with multiple customization options
- Standby mode to extend battery life during downtime
- Wide wireless working range up to 50 meters (160 feet)
- AES256 encrypted wireless transmission for secure communication
- Advanced rechargeable lithium-ion battery with up to 15 hours of runtime
- USB charging for convenient power management
Specifications
| Specification | Value |
|---|---|
| Microphone Capsule | BETA® 58A |
| Frequency Range | 1920–1930 MHz (Z10); 1880–1900 MHz (Z11) |
| Battery Type | Rechargeable Li-Ion |
| Battery Life | Up to 15 hours |
| Working Range | 50 meters (160 feet) |
| Dimensions (L × Dia.) | 226 mm × 51 mm (8.9 in. × 2.0 in.) including BETA 58A capsule |
| Weight | 323 g (11.4 oz.) with batteries |
| Charge Connector | USB 3.0 Type A |
| Operating Temperature Range | 0°C (32°F) to 49°C (120°F) |
| Storage Temperature Range | −29°C (−20°F) to 74°C (165°F) |
| Encryption | AES256 |
Manuals and Documents
- Specifications Sheet - Detailed specifications for the Shure MXW2/BETA58 Handheld Transmitter.
