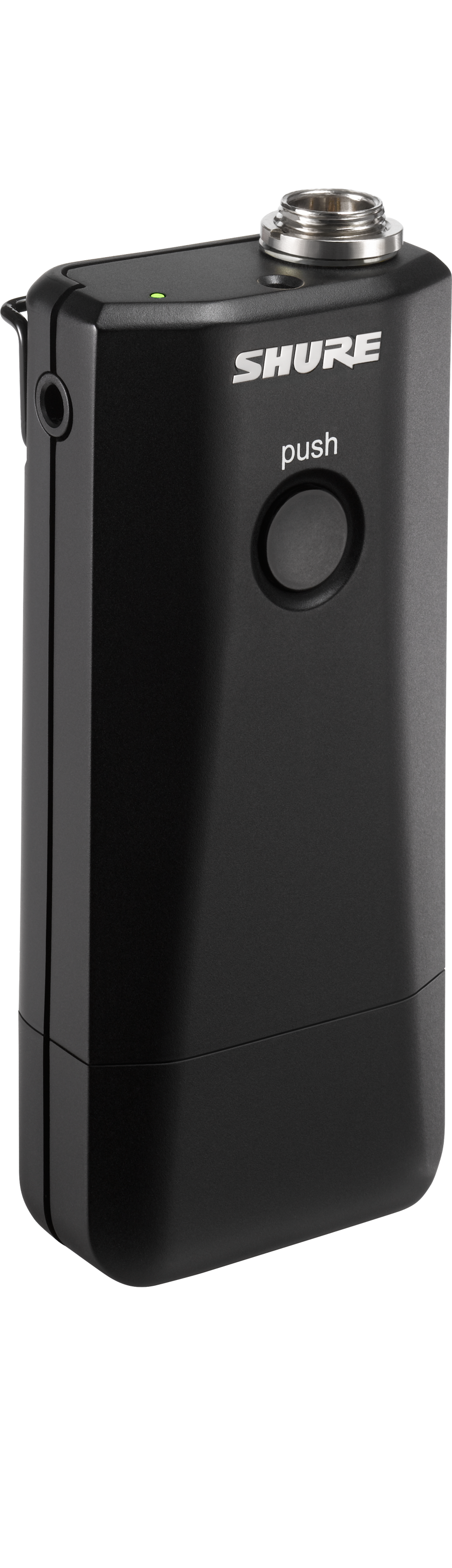

Shure MXW1/O Bodypack Transmitter

By Brian Long

Introduction

The Shure MXW1/O Bodypack Transmitter is part of the Microflex® Wireless System, delivering exceptional audio quality and versatile microphone options for professional AV environments. This compact transmitter features an integrated omnidirectional microphone for convenient hands-free operation, as well as an external input for lavalier or ear-worn microphones. Its discreet design and reliable wireless performance make it an ideal choice for boardrooms, classrooms, and conference spaces.

Equipped with advanced rechargeable lithium-ion batteries, the MXW1/O provides up to 9 hours of continuous use and supports remote monitoring of battery status. Its secure AES256 encryption ensures privacy and reliability in critical applications.

Features and Specifications

Features
  • Integrated omnidirectional microphone for hands-free use
  • External input for lavalier or ear-worn condenser microphones
  • Compact, low-profile design for discreet operation
  • Advanced rechargeable lithium-ion battery with up to 9 hours of runtime
  • Programmable mute button with multiple configuration options
  • Bi-directional wireless for real-time remote control
  • AES256 encrypted wireless transmission for secure communication
  • Wide working range up to 50 meters (160 feet)
  • Out-of-range alert for reliable operation
Specifications
Specification Value
Integrated Microphone Type Omnidirectional
Frequency Range 1920–1930 MHz (Z10); 1880–1900 MHz (Z11)
Battery Type Rechargeable Li-Ion
Battery Life Up to 9 hours
Input Connector 4-pin male mini connector (TA4M)
Working Range 50 meters (160 feet)
Dimensions (H x W x D) 22 mm × 45 mm × 99 mm (0.9 in. × 1.8 in. × 3.9 in.)
Weight 85 g (3.0 oz.) with batteries
Charge Connector USB 3.0 Type A
Operating Temperature Range 0°C (32°F) to 49°C (120°F)
Storage Temperature Range −29°C (−20°F) to 74°C (165°F)
Encryption AES256
