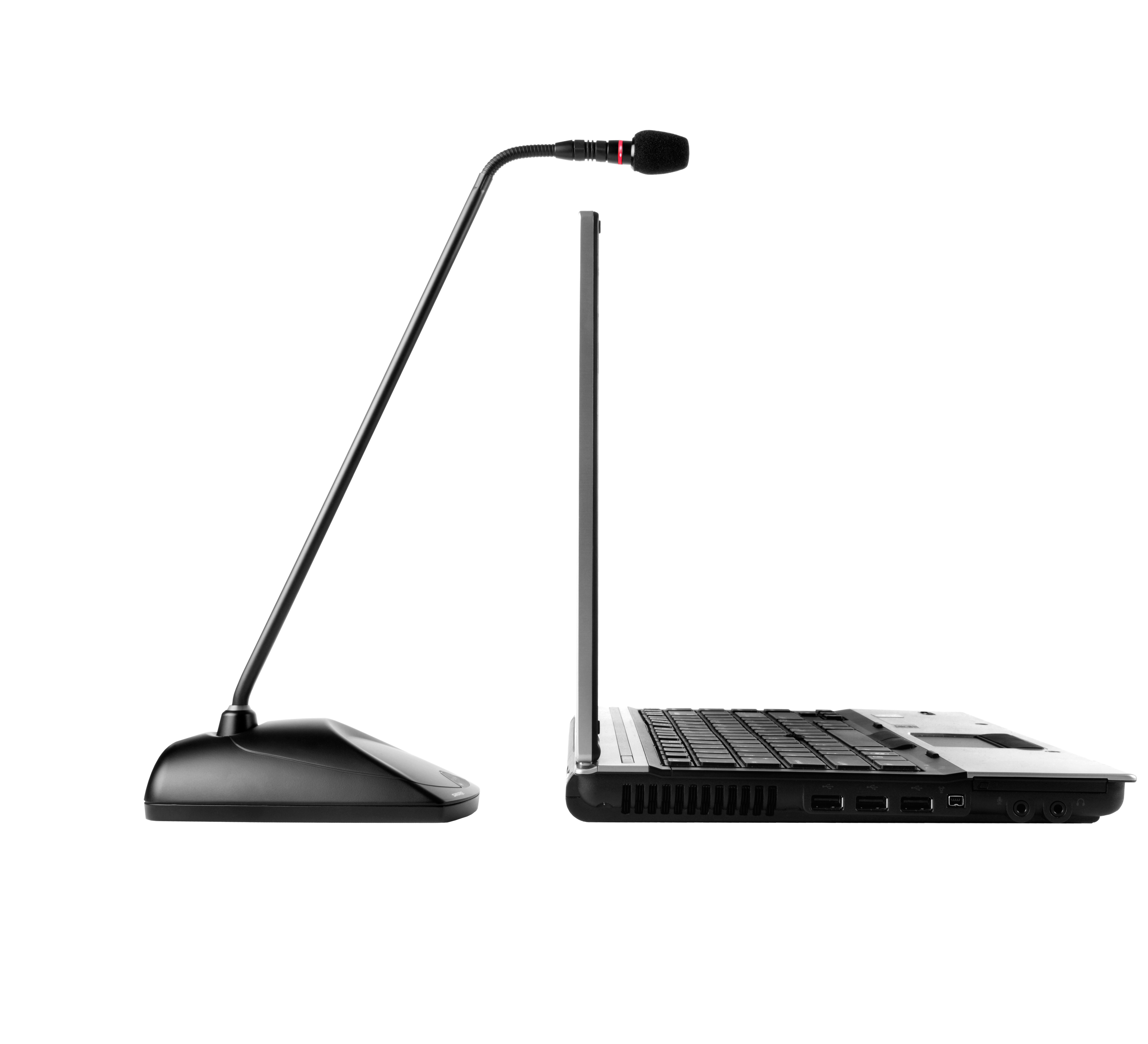

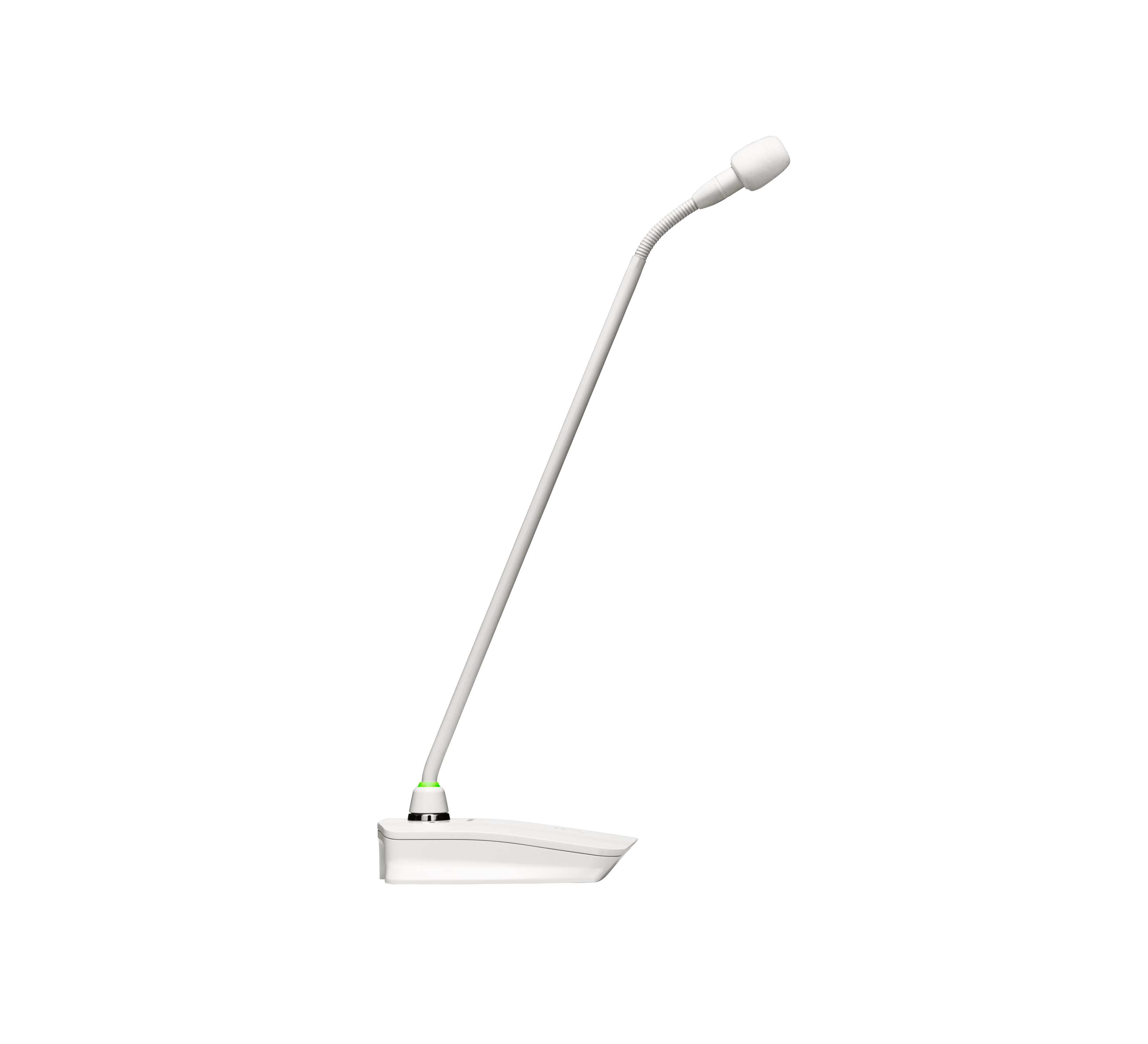

Shure MX415 Gooseneck Microphone

By Brian Long

Introduction

The Shure MX415 Gooseneck Microphone is the longest model in the Microflex® Wired lineup, designed for applications requiring extended reach and high-quality audio capture. Featuring a sleek 15-inch gooseneck, interchangeable cartridges, and CommShield® technology for RF interference protection, the MX415 ensures exceptional performance in conference rooms, lecture halls, and other professional AV environments.

The MX415 includes a bi-color status indicator, a programmable mute switch, and compatibility with Shure’s surface mount and desktop preamps, offering flexibility and seamless integration into AV systems.

Key Features

  • Extended-Length Gooseneck: 15-inch design for maximum reach and versatile placement.
  • Interchangeable Cartridges: Compatible with cardioid, supercardioid, and omnidirectional capsules for tailored audio performance.
  • CommShield® Technology: Guards against RF interference from mobile and digital devices.
  • Bi-Color Status Indicator: Visual feedback for microphone activity and mute status.

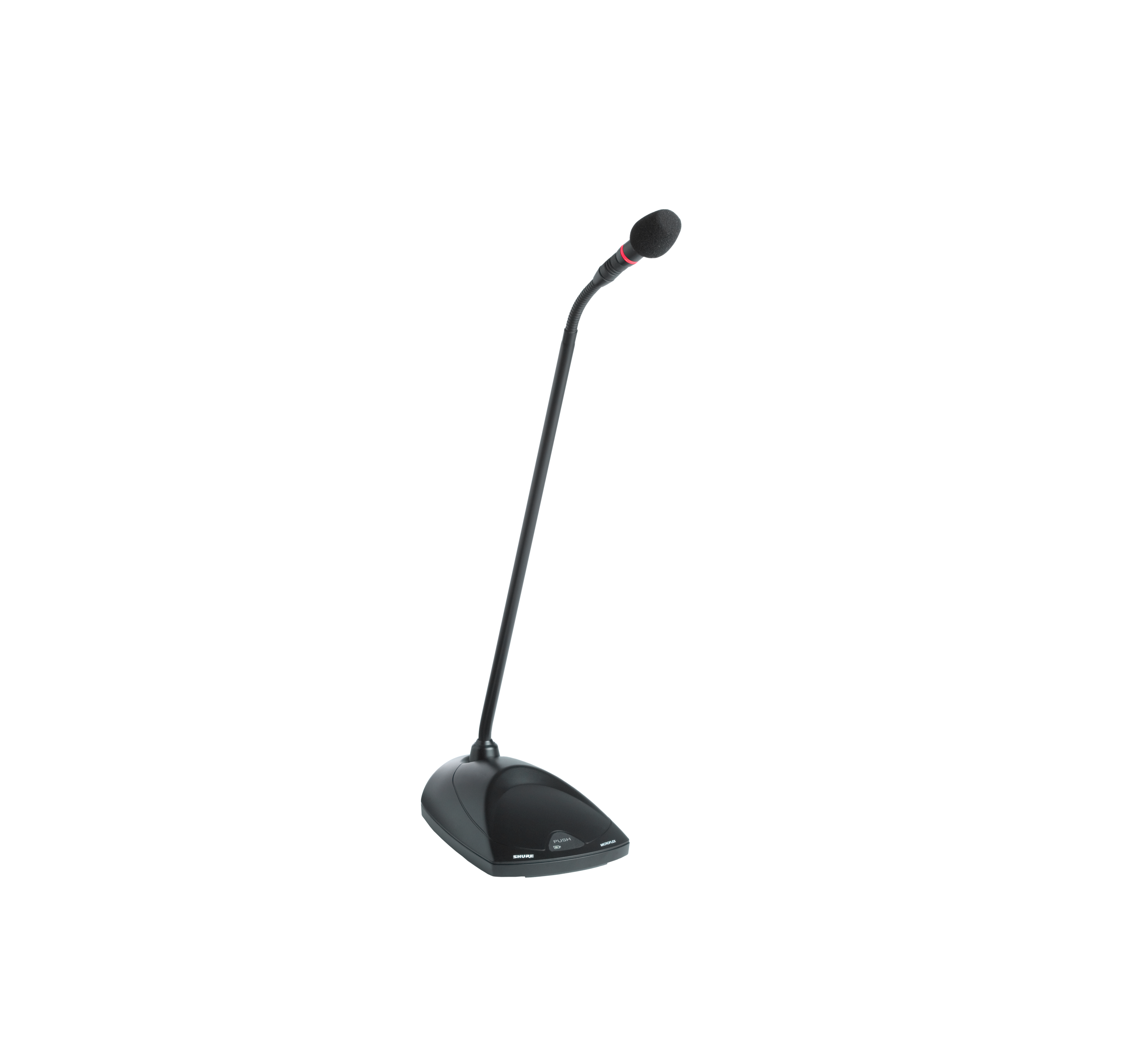

  • Flexible Integration: Compatible with MX400SMP surface mount preamp and MX400DP desktop base.
  • Wide Frequency Response: Captures natural and clear sound across the spectrum (50 Hz – 17 kHz).

Applications

The Shure MX415 Gooseneck Microphone is ideal for:

  • Conference Rooms: High-quality audio for professional discussions and presentations.
  • Houses of Worship: Delivers exceptional audio performance for sermons and events.
  • Lecture Halls: Provides precise sound capture for educators and speakers.

Specifications

Specifications
Feature Value
Microphone Type Electret Condenser
Polar Pattern Cardioid (MX415/C), Supercardioid (MX415/S)
Frequency Response 50 Hz – 17 kHz
Sensitivity Cardioid: -35 dBV/Pa (18 mV)
Supercardioid: -34 dBV/Pa (21 mV)
Maximum SPL Cardioid: 121 dB SPL
Supercardioid: 120 dB SPL
Equivalent Noise Level Cardioid: 28 dB SPL
Supercardioid: 27 dB SPL
Dynamic Range 93 dB
Output Impedance 150 Ω (EIA Rated)
Power Requirements 48–52 V DC phantom, 8.0 mA
Length 15 inches (381 mm)
Net Weight 0.075 kg (0.165 lbs)
