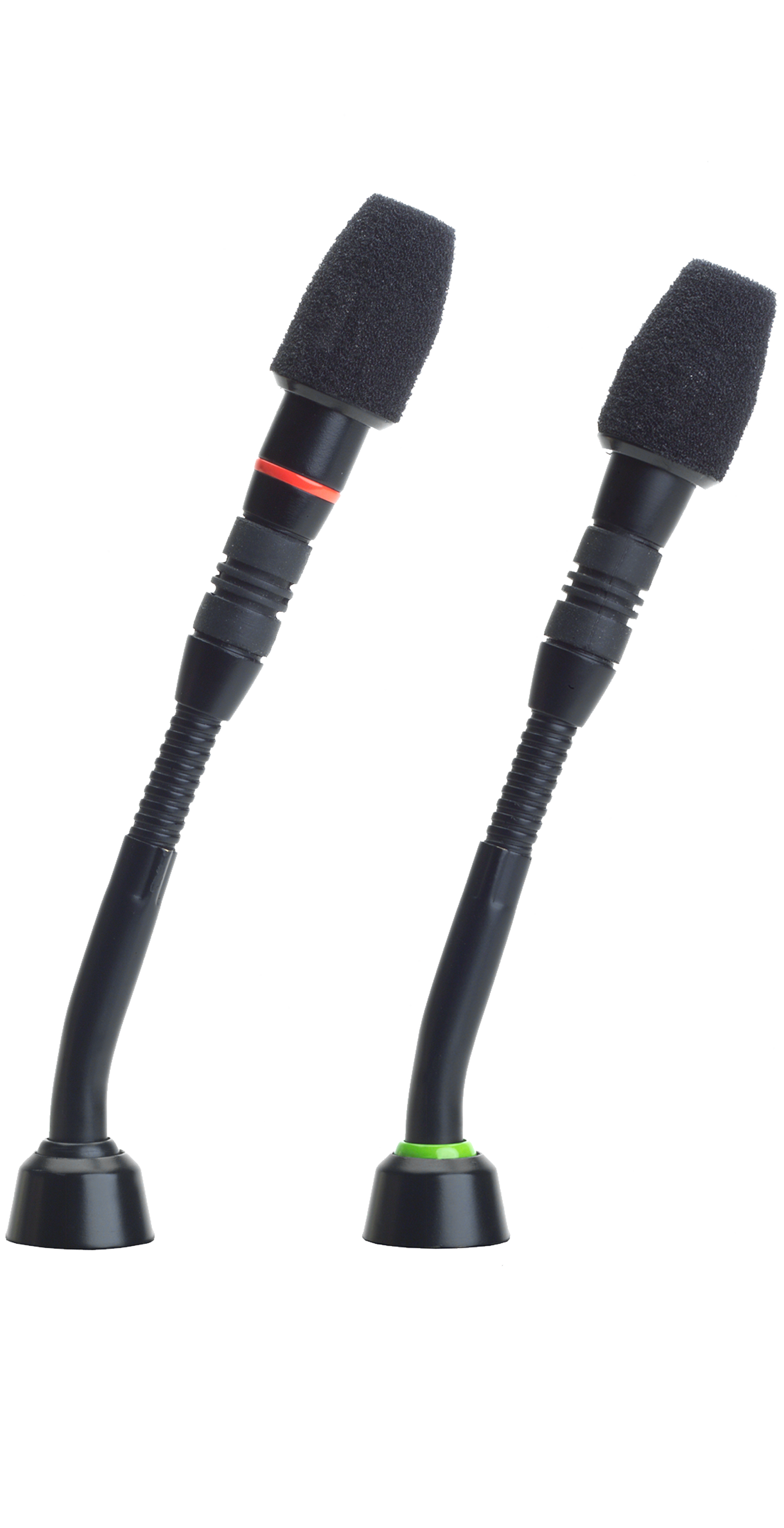

Shure MX405 Gooseneck Microphone

By Brian Long

Introduction

The Shure MX405 Gooseneck Microphone is part of the Microflex® Wired lineup, delivering exceptional sound quality and flexibility for installed audio applications. With its sleek 5-inch design, interchangeable cartridges, and CommShield® technology for RF interference protection, the MX405 is ideal for conference rooms, lecture halls, and houses of worship.

The MX405 features a bi-color status indicator, programmable mute switch, and compatibility with surface mount and desktop preamps, ensuring seamless integration into professional AV systems.

Key Features

  • Compact Design: 5-inch gooseneck for discreet and versatile placement.
  • Interchangeable Cartridges: Compatible with cardioid, supercardioid, and omnidirectional capsules for tailored audio performance.
  • CommShield® Technology: Protects against RF interference from digital and mobile devices.
  • Bi-Color Status Indicator: Visual feedback for microphone activity.
  • Flexible Connectivity: Compatible with MX400SMP surface mount preamp and MX400DP desktop base.
  • Wide Frequency Response: Captures natural and clear sound across the spectrum (50 Hz – 17 kHz).

Applications

The Shure MX405 Gooseneck Microphone is ideal for:

  • Conference Rooms: High-quality audio for meetings and discussions.
  • Houses of Worship: Seamless integration for sermons and presentations.
  • Lecture Halls: Precise audio capture for educators and speakers.

Specifications

Specifications
Feature Value
Microphone Type Electret Condenser
Polar Pattern Cardioid (MX405/C), Supercardioid (MX405/S)
Frequency Response 50 Hz – 17 kHz
Sensitivity Cardioid: -35 dBV/Pa (18 mV)
Supercardioid: -34 dBV/Pa (21 mV)
Maximum SPL Cardioid: 121 dB SPL
Supercardioid: 120 dB SPL
Equivalent Noise Level Cardioid: 28 dB SPL
Supercardioid: 27 dB SPL
Dynamic Range 93 dB
Output Impedance 150 Ω (EIA Rated)
Power Requirements 48–52 V DC phantom, 8.0 mA
Length 5 inches (127 mm)
Net Weight 0.054 kg (0.119 lbs)
