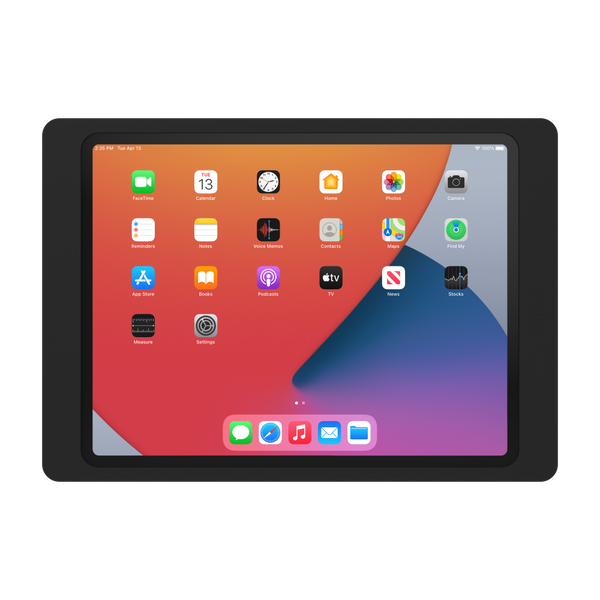

iPort Surface Mount
Brian Long
The Most Elegant Way to Permanently Mount iPad
Surface Mount is a precision-engineered aluminum bezel that mounts iPad near-flush to any wall or solid surface, for a seamless, built-in appearance in permanent installations. A PoE+ network adapter supplies power and data over a single cable, run via Cat5 up to 300 feet from the power source — no separate power adapter needed.
Features
- Near-Flush Wall Mounting – Aluminum bezel sits tight against the wall for an integrated look.
- PoE+ Included – Power and data over a single Cat5 run, up to 300 feet from the power source.
- Built-In Locking – Secures the iPad in place for public-facing and shared spaces.
- Full Device Access – Power button, microphones, and speakers remain accessible once installed.
- Finish Options – Available in white or black to match the surrounding space.
Use Cases
- Corporate AV – Meeting room controls and digital signage.
- Residential – Home automation and smart home control panels.
Compatible iPad Models
- iPad Air 13" (M4, M3, M2)
- iPad Air 11" (M4, M3, M2)
- iPad Air 10.9" (4th & 5th gen)
- iPad Pro 12.9" (all generations)
- iPad Pro 11" (all generations)
- iPad 10.9" (10th gen / A16)
- iPad 10.2" (8th & 9th gen)
- iPad mini (A17 Pro, 6th gen)
Specifications
| Specification | Value |
|---|---|
| Dimensions | 11.43" × 7.43" × 0.43" (11" models); 12.75" × 8.87" × 0.43" (13" models) |
| Weight | 0.42–1.56 lbs (varies by model) |
| Colors | White, Black |
| Input/Output Voltage | 5.3VDC/3A or 9VDC/3A |
| PoE+ Requirement | 50–57VDC, 30W |
| Connector | USB-C |
| Wall Box Compatibility | US1G, EURO1G, UK1G |
| Operating Temperature | 32°F to 95°F |
| Operating Humidity | 5% to 95% |
| Warranty | 1 year |
What's Included
- Surface Mount bezel
- Mounting hardware
- Security tool
- Information card
- USB-C cables
- PoE+ network adapter
Note: Apple Touch ID will not function when the iPad is installed in the Surface Mount.
